DMX Low-Voltage External Control 5-Channel Constant Voltage Driver
- The OLED screen combined with touch buttons offers an intuitive display and simple operation.
- It features overcurrent, short-circuit, and over-temperature protection with automatic recovery, as well as fault alert functions.
- Supports both manual addressing and long-distance automatic addressing.
- The port refresh rate can be set, with a maximum of up to 4Khz.

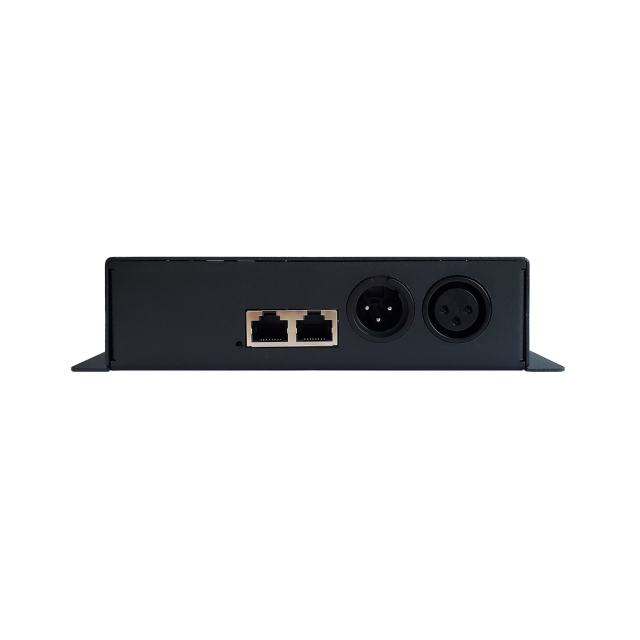

- The DMX interface offers a choice between a 3-pin XLR and RJ45, with built-in enhanced surge protection.
The SEEKWAY DM08R5 is a basic decoder that adheres to the DMX512 international standard protocol. It can precisely control RGB 3-primary-color lighting fixtures, equipped with a protected RS485 signal conversion circuit to achieve delicate brightness control. With its high-speed port refresh rate and enhanced smoothness of low-gray-level changes, it ensures the rapid and accurate transmission of signals. It also features anti-reverse and short-circuit protection functions to ensure safe usage. Moreover, it supports connection with a master controller for remote control, making it an ideal choice for various occasions such as professional stage lighting, architectural lighting, and commercial lighting.
| Technical Specifications | |
|---|---|
| Input Voltage | DC 12～24V |
| Output Current | MAX 8A per channel |
| Output Power | 960W |
| Gray Scale Levels | 256 levels corrected to 65536 levels, Gamma 2.2 |
| Transmission Protocol | DMX512 |
| Net Product Weight | 420g |
| Product Dimensions | 175L*77W*40H(mm) |
| Operating Temperature | -25℃～65℃ |
