Cost-effective Smart Street Light Retrofit: Seekway R201 & R202 4G IoT Controllers Guide

Transforming Street Lamps from Cost Centers to City Assets

A conventional street lamp does exactly two things — it turns on and it turns off. Behind that simplicity sits a real burden: high electricity cost, lagging maintenance that depends on manual patrols, and dark gaps when disasters strike. As smart cities and cultural-tourism night tours expand, what operators actually need is a smart street lighting control system that can be managed remotely, dimmed on demand, and self-diagnosed. To solve this, Seekway Innovations developed its Smart Street Lighting Control System, powered by Seekway’s smart street light controllers (R201 and R202) to bring next-generation efficiency directly to your streets.

Introducing Seekway R201 & R202: Advanced IoT Controllers

Seekway’s Smart Street Light Controllers are single- and dual-lamp pixel controllers. With built-in 4G, BeiDou+GPS, and leakage detection, each unit fuses a "lighting" subsystem and an "ambient" subsystem into one housing, forming a "control + communication + management" trinity:

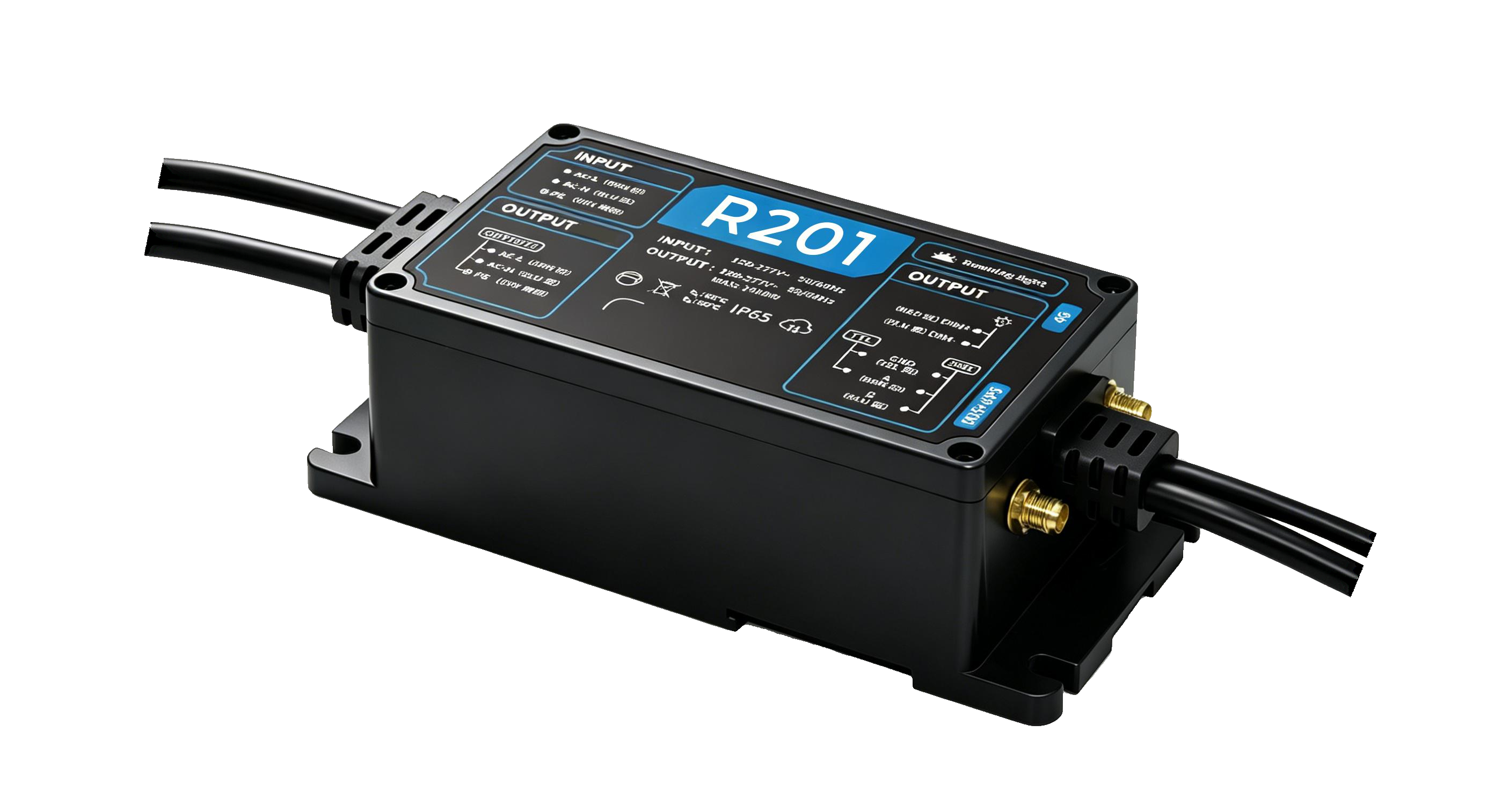

• R201 (single lamp): 1× 120–277VAC output (MAX 1000W per channel) with 1× 0–10V/PWM dimming signal.

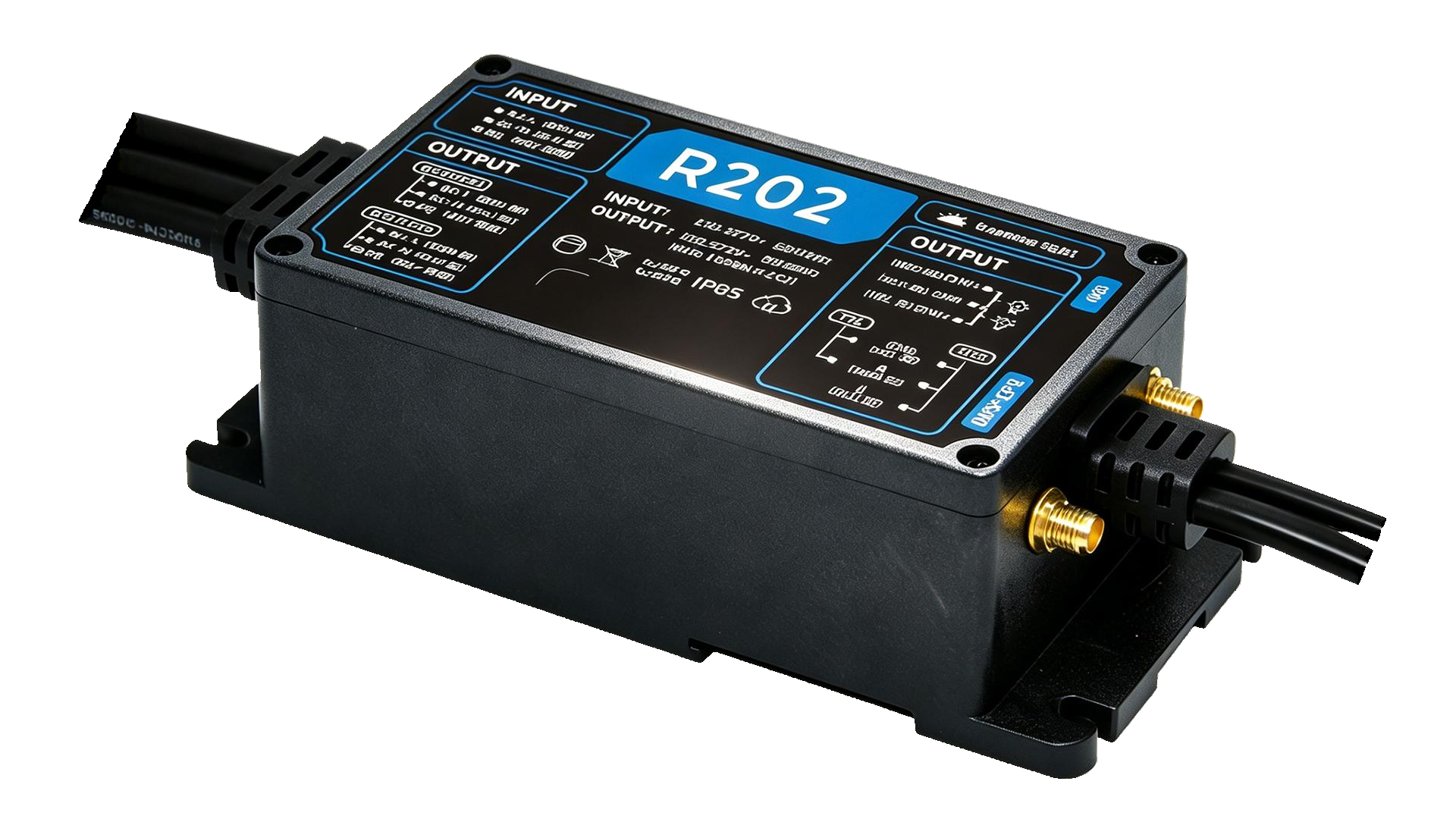

• R202 (dual lamp): 2× 120–277VAC outputs (MAX 1000W each) with 2× 0–10V/PWM dimming — ideal for twin-pole fixtures and high-load architectural projects.

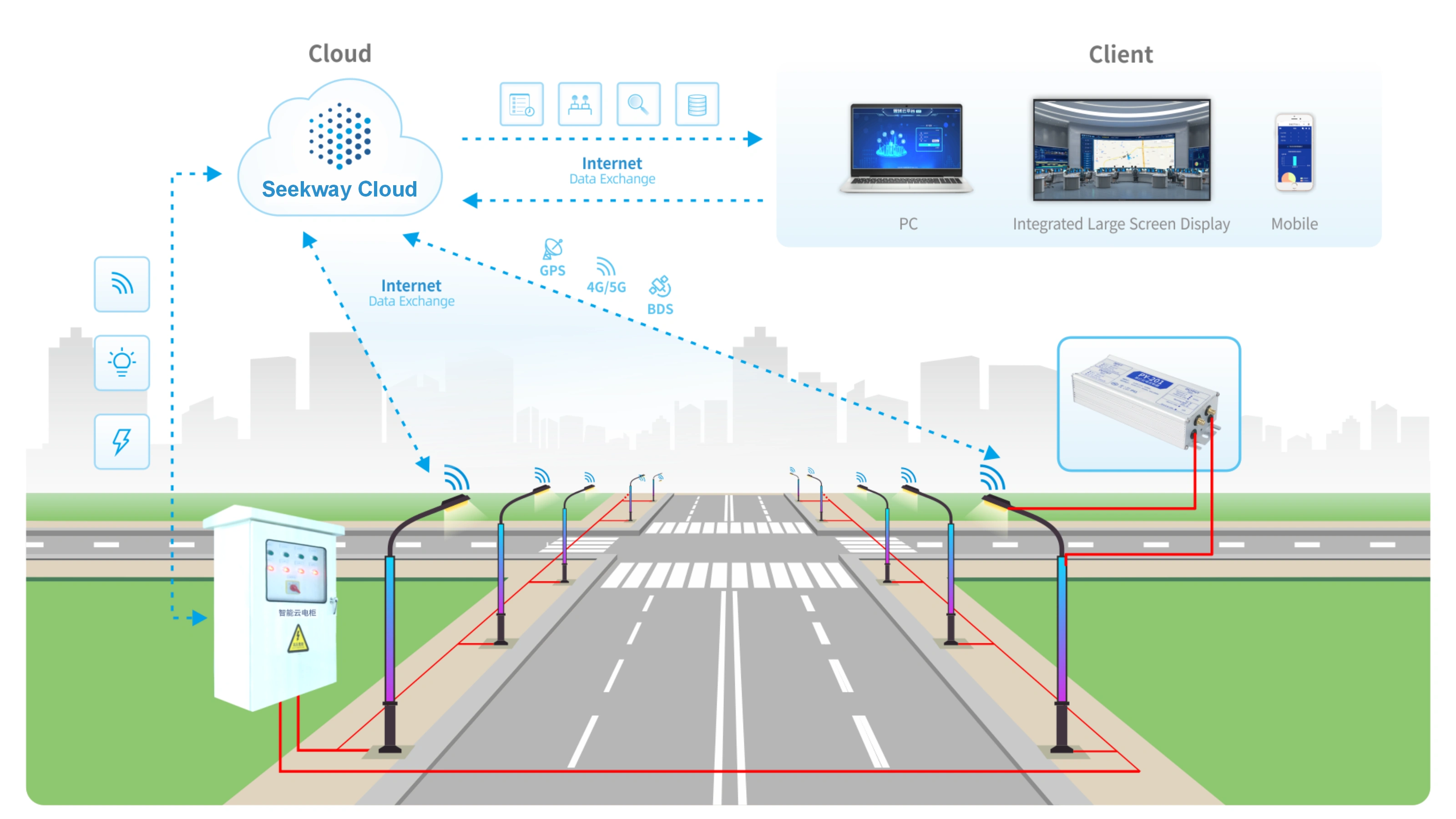

It works standalone as a single-lamp controller and also as one tier of a larger ecosystem. Under the Seekway Cloud Platform, the system can add smart cloud-power boxes, multi-channel controllers, and storage nodes — covering device, cloud, and user ends for full-link intelligent management.

Key Features: The 4 Pillars of Smart Lighting

• 4G Cloud Control: A built-in 4G CAT1 module and nano-SIM let the controller join the cloud platform the moment its antenna is attached — switch, dim, and monitor from anywhere, no on-site presence required.

• GPS Synchronization: The integrated BeiDou+GPS receiver lets multiple units compute local sunrise and sunset from latitude, longitude, and date, keeping effects in millisecond-level sync across an entire corridor.

• OTA Remote Upgrade: Both firmware and lighting effects are pushed over the air. No field reprogramming, no ladder climbs.

• Sound & Music Interaction: Ambient effects can react to audio, turning a functional street into a living night-tour attraction.


Visible ROI: Energy Efficiency & Proactive O&M

The real payoff goes beyond "being remote." The R201 and R202 report each lamp's voltage, current, power, energy, and power factor in real time (±2% accuracy) and push running status and faults over 4G with precise location. Paired with the cloud platform's scheduled dimming, the system delivers smooth 0–100 level brightness adjustment: comprehensive energy use drops by over 40% and labor O&M cost falls by more than 50%. In severe weather it auto-brightens, adding a layer of public-safety insurance.

R201 vs. R202: How to Select the Right Model

The rule is simple: pick R201 for a single source on one pole, and R202 when you need two independent loads or split dimming control.

Technical Specifications

Versatile Applications: From Urban Roads to Rural Paths

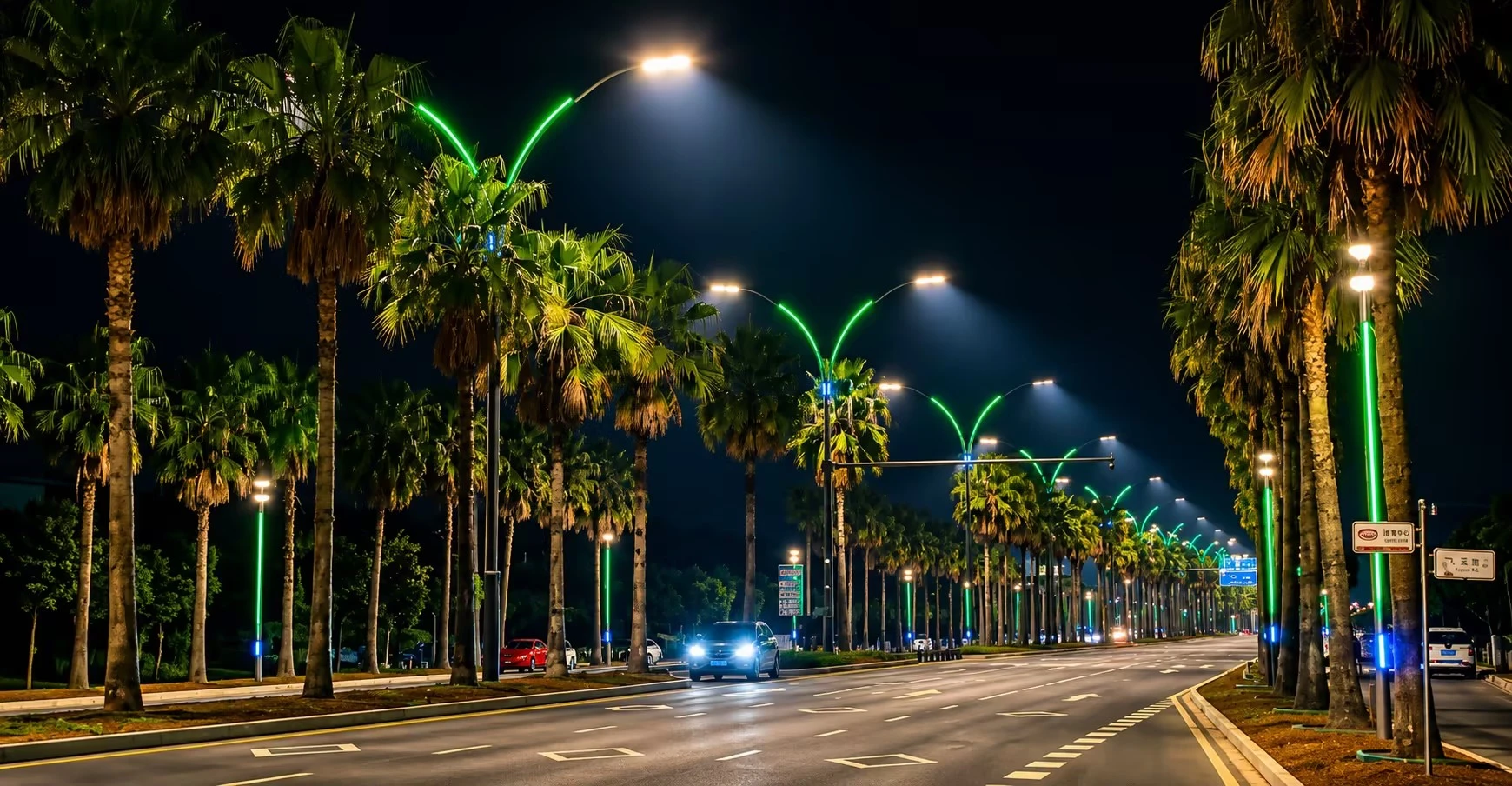

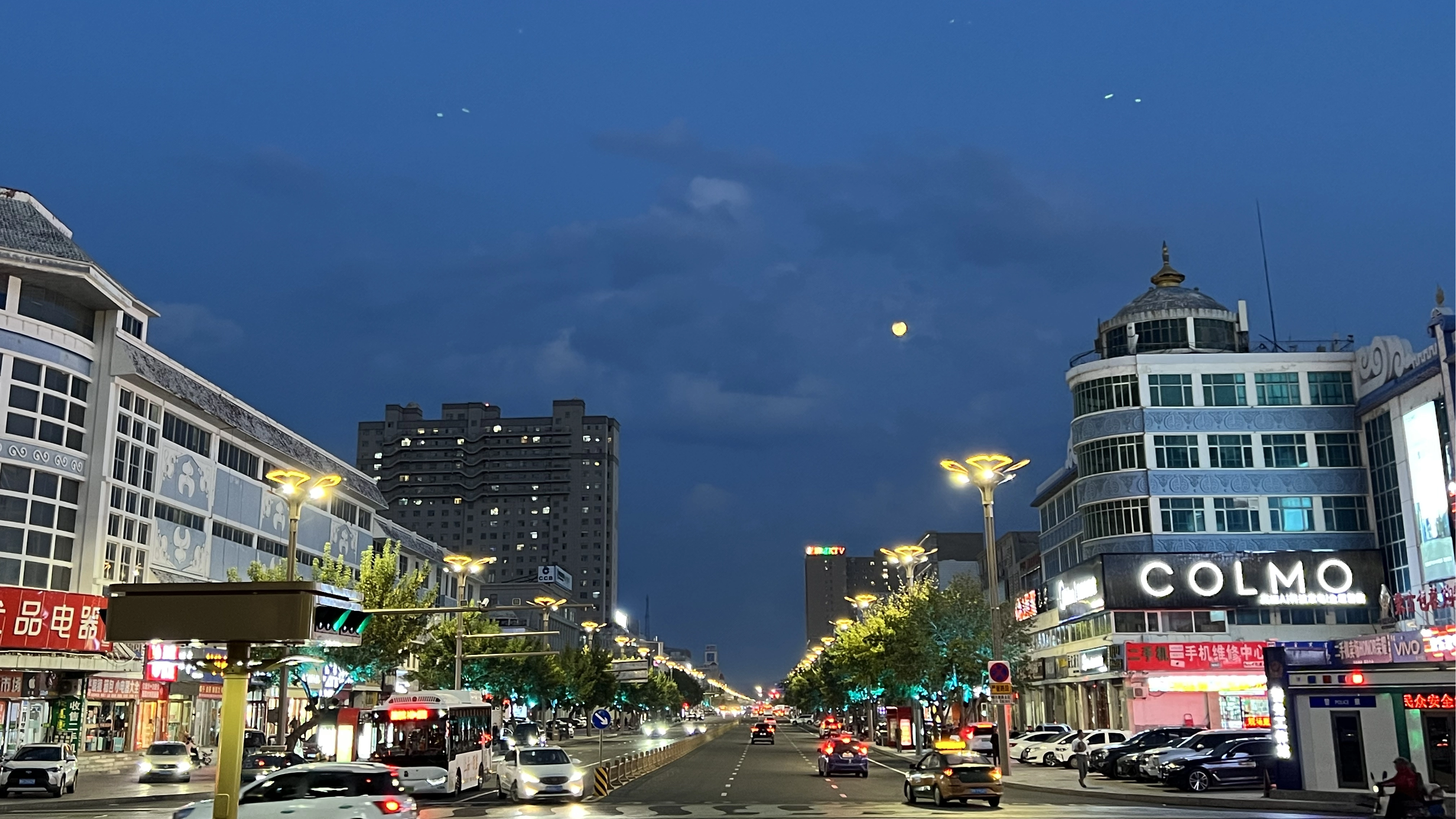

Urban lighting: On main roads, tunnels, and bridges, AI-driven dynamic dimming combined with green electricity cuts deep energy cost and trims public spending; during disasters the system can provide emergency lighting to protect the city's lifeline.

Cultural tourism & commercial districts: The cloud platform choreographs dazzling light shows at one click, boosting "night-economy" appeal at far lower deployment and O&M cost than traditional setups.

Remote & off-grid villages: The ecosystem can extend storage nodes for independent power supply, closing rural infrastructure gaps, improving travel safety, and supporting rural revitalization.

System Workflow: Cloud Platform & LED Player

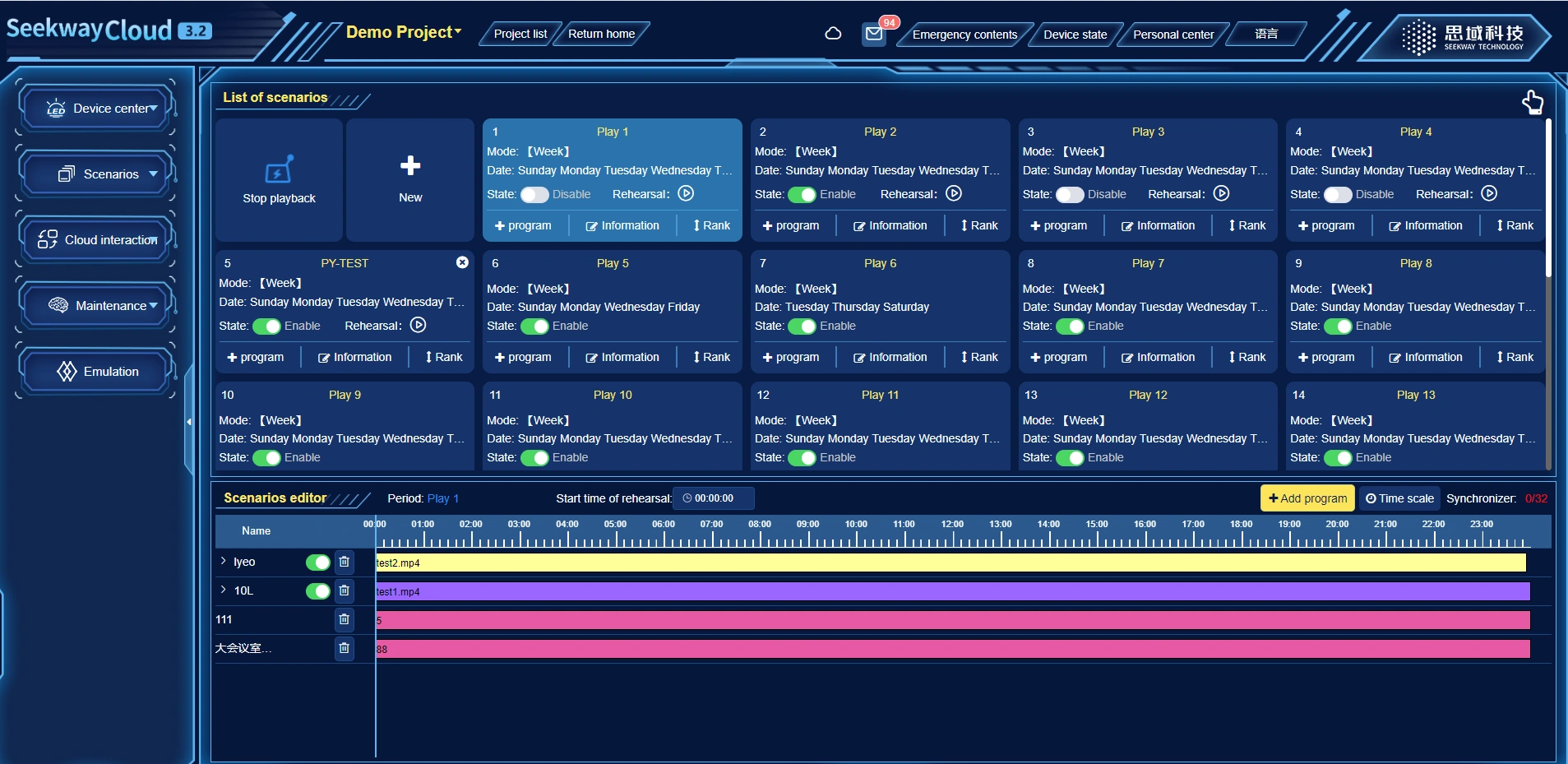

Lighting effects are authored in LED Player software (version 3.2.13.3 or later), exported as a cloud effect file, and uploaded to the Seekway Cloud Platform — accessible from both a PC browser and a WeChat mini-program. From there, operators group any lamp pole, apply cloud control, longitude/latitude control, or scene control, and run one-key addressing to assign chip addresses and push effects. The same dashboard shows live metering and alarm status, so control and monitoring live in one place. The whole workflow needs no USB drive and no site visit; an update goes live the instant it is pushed.

 Seekway Innovations Cloud Platform

About Seekway Innovations

Seekway Innovations has spent over two decades in intelligent lighting control, holding 100+ patents and software copyrights, certified to ISO 9001 / 14001 / 45001 and CQC, and repeatedly honored with the Aladdin Award for best technology and product. From single-lamp controllers to the cloud platform, the core technology is fully self-developed — delivering a stable, advanced, and continuously upgradeable pathway for city lighting.

More Than Savings: Turn Streetlights Into Intelligent Nodes

The real value of a smart street lighting control system is not just a lower power bill — it is turning every pole into a node that can sense, be controlled, and even create. With 4G cloud control, GPS synchronization, OTA upgrades, and measurable energy and safety gains, the R201 and R202 make that node genuinely intelligent. Seekway Innovations pairs these controllers with its cloud platform and LED Player to deliver a complete hardware-to-software pathway for streets and cities alike — proof that the smartest streetlight is the one you never have to climb a ladder to manage.

Ready to specify controllers for your street lighting project? Explore the full Smart Street Lighting Control System.

FAQ

Q1: What is the main difference between R201 and R202?
A: R201 offers a single 120–277VAC output (MAX 1000W) with one dimming channel; R202 provides two outputs (MAX 1000W each) with two dimming channels. All other functions are identical.

Q2: Can it work without 4G signal?
A: Cloud control and OTA depend on 4G. If the signal is weak, check the antenna (face it skyward, avoid sealed metal enclosures); the unit auto-reconnects and reports data once the network returns.

Q3: Which LED chips are supported?
A: It covers mainstream DMX chips (UCS512 family, TM512, SM175xx, GS85xx, SW-D, etc.) and single-wire TTL (WS2811/2818, TM18xx, SM167xx, P9883, etc.), all with one-key addressing.

Q4: How do I update lighting effects?
A: Author the effect in LED Player and push it through the cloud platform — no on-site card insertion or rewiring required.

Q5: Where do the energy-saving and O&M figures come from?
A: The controller meters power in real time and reports to the cloud; combined with scheduled dimming, the system achieves over 40% lower energy use and 50%+ lower O&M cost, with faults auto-reported and precisely located.
