Transform storefront windows into vivid floating graphics without losing interior natural light. Seekway’s MicroMesh Transparent LED offers high transparency, a lightweight design, low power draw, and fast snap-fit modular setup.
High Transparency LED Display That Keeps Views Clear
Many retail stores, building owners, and event organizers need large digital displays but do not want to block natural light or reduce visibility. Seekway Innovations offers the MicroMesh Transparent LED Display as one option in this category.
This display allows natural light to pass through while displaying vibrant video and image content. It is designed for projects that require both effective digital display capabilities and preserved openness.
Key Technical Features and Functional Advantages
High Visual Transparency
Solid LED displays reduce interior daylighting, requiring additional indoor lighting.
Technical Design: Utilizing an open-mesh structural design, the MicroMesh series achieves a visual transparency rate of up to 80%. This high-transparency structure allows natural light to enter the building interior while enabling clear external visibility for people inside the venue.
Ultra Lightweight & Slim
Heavy cabinet designs increase load-bearing requirements, adding structural engineering overhead to installation projects.

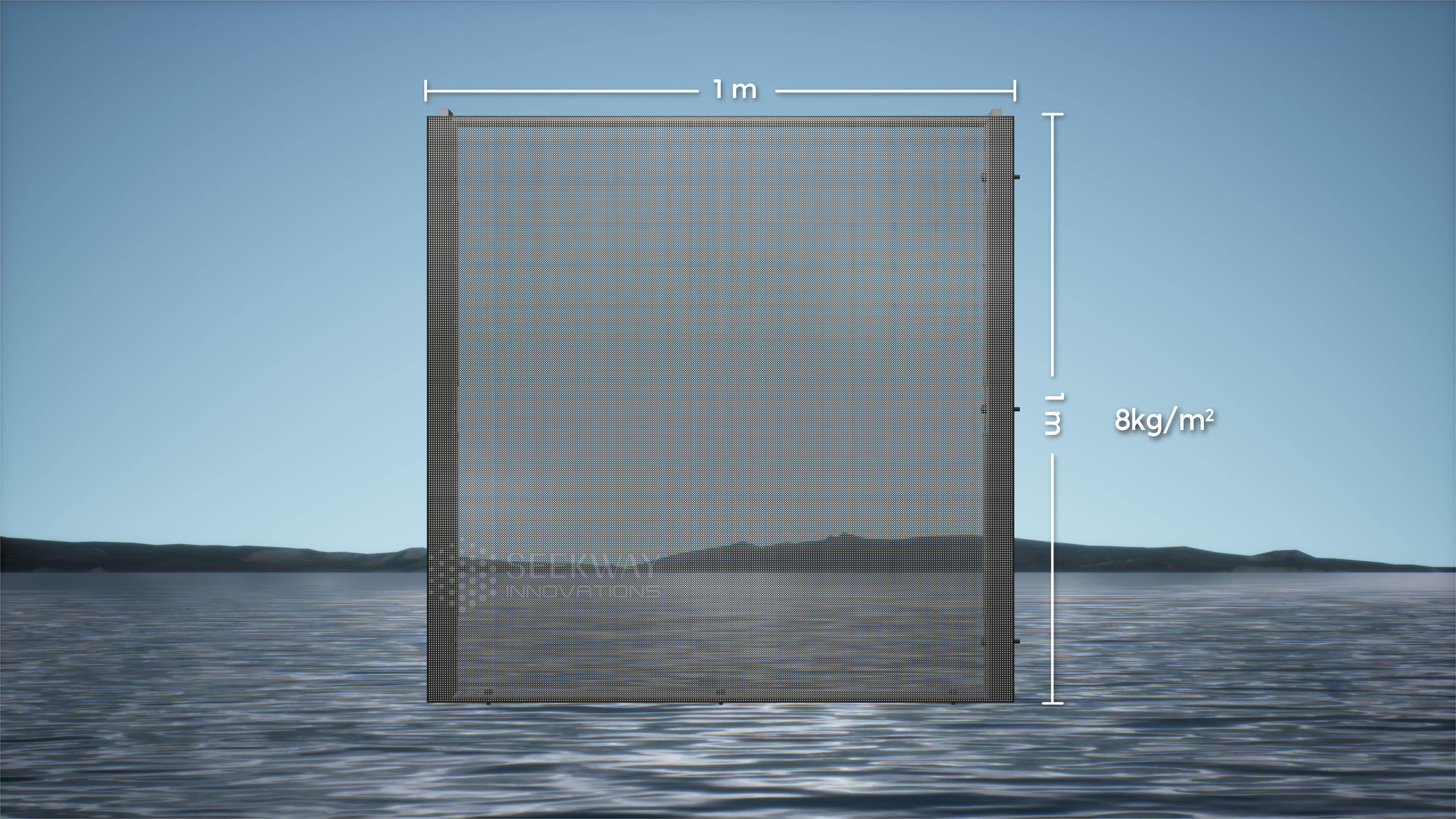

Structural Specifications: Weighing ≤ 8.0 kg per square meter with a depth profile of 62 mm, the display modules significantly lower structural stress. They can be suspended or frame-mounted behind existing glass facades without requiring heavy structural modifications.
Snap-Fit Assembly Mechanics
Traditional hardware-intensive assembly methods can prolong field installation timelines and increase labor costs.

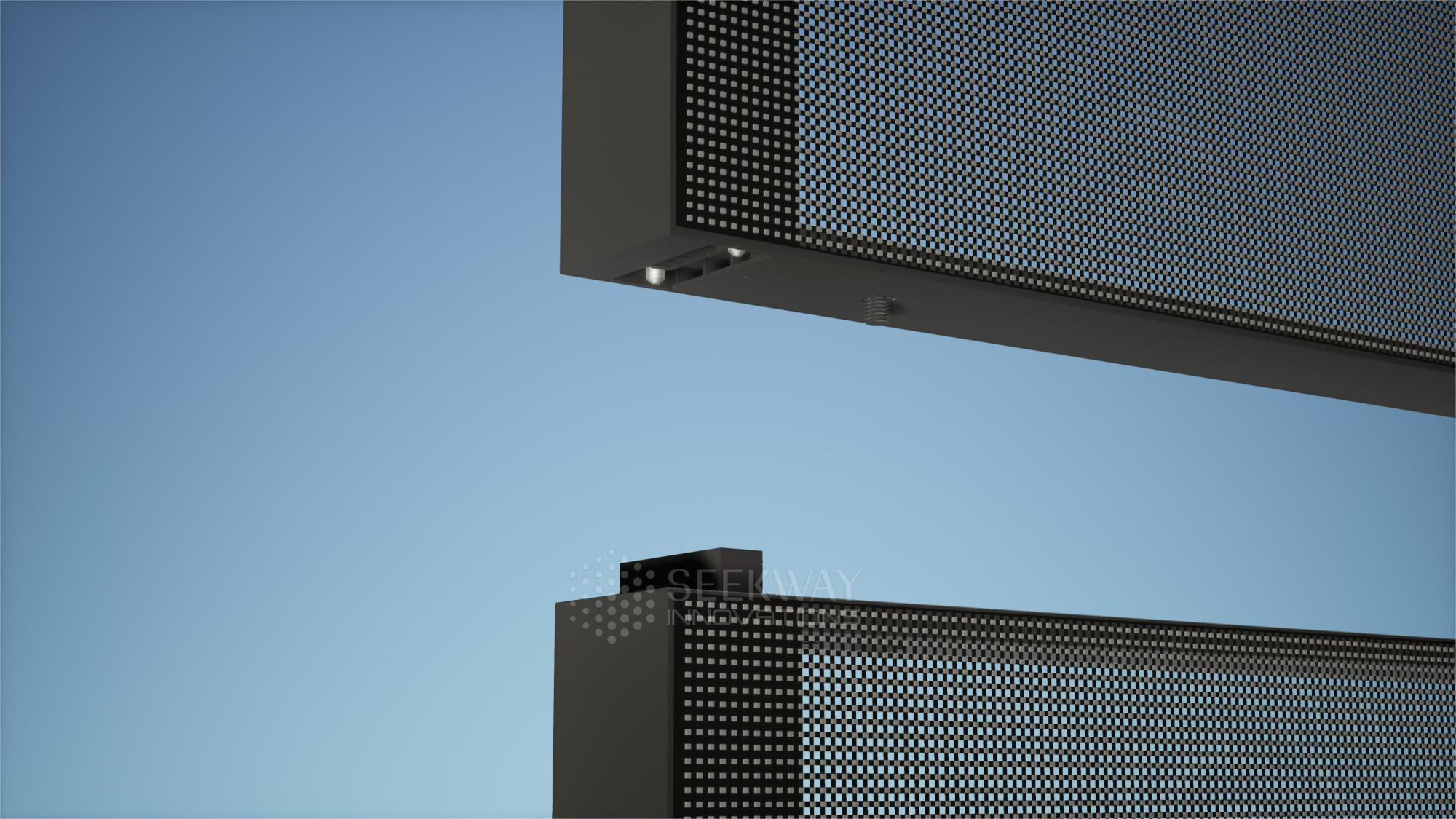

Installation Method: The MicroMesh Display incorporates an integrated snap-fit locking mechanism. This feature allows technicians to connect and align modules via quick-lock latching, simplifying the setup process. The display supports both front and rear maintenance access for module replacement.
Modular & Scalable Design
Architectural glass surfaces vary in dimensions, requiring customizable display configurations to fit specific layout boundaries.

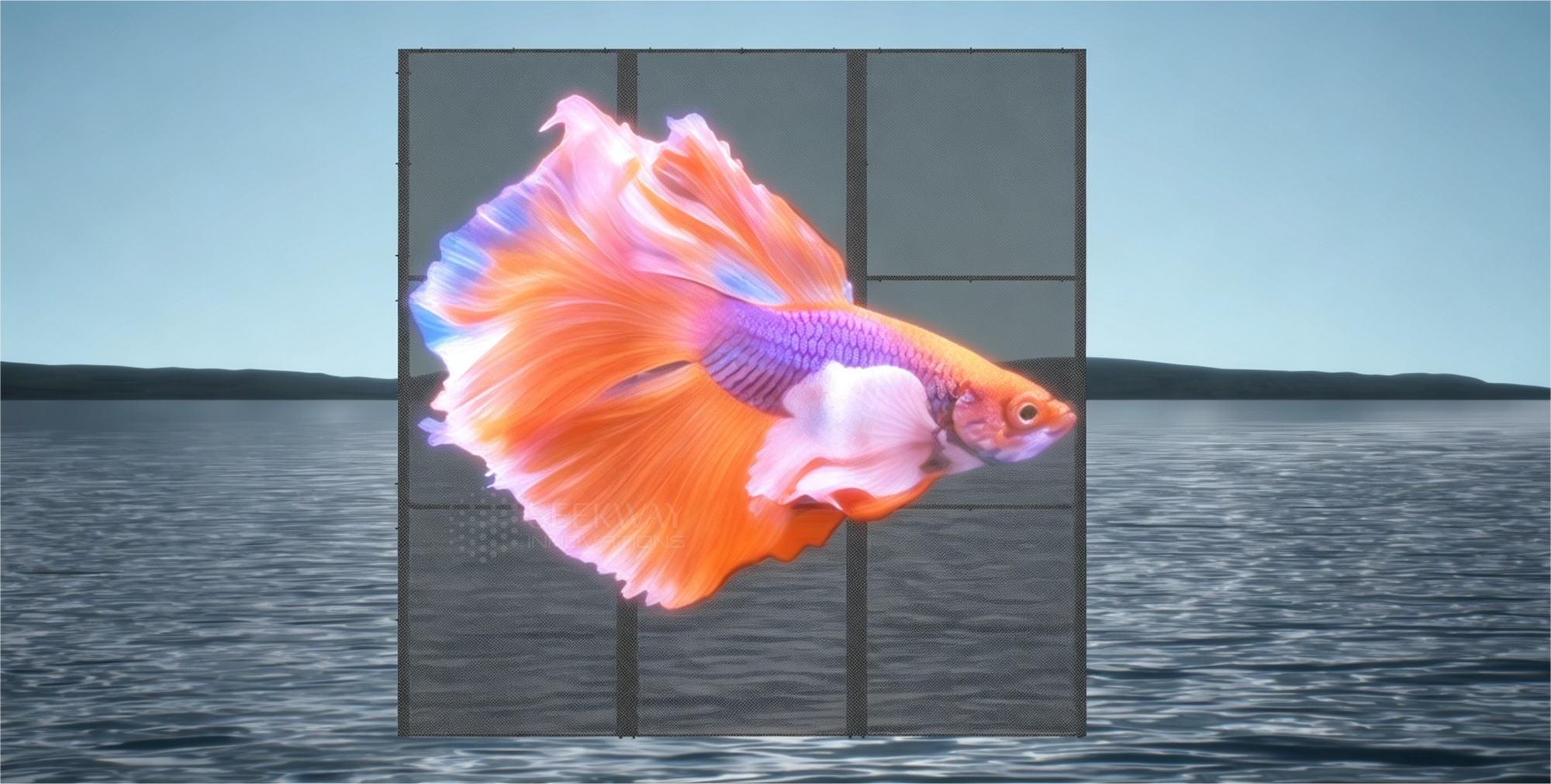

Based on standard 1 m² (1000 mm × 1000 mm) panel configurations, the modular architecture facilitates flexible sizing across varied glass wall dimensions. Supported by FlexAlign fine-tuning mechanics, the display balances tolerance gaps to maintain surface uniformity across contiguous panels.
Low Power Consumption
Continuous operation of high-brightness visual displays directly impacts operational electricity usage.
Energy Performance: Featuring energy-efficient LEDs and optimized driver ICs, the display produces 2,500 to 3,000 nits of brightness for daylight visibility. The open-mesh design promotes natural convection for thermal management, reducing power consumption compared to standard outdoor screens and avoiding the need for dedicated air conditioning systems.
Technical Specifications
|
Model
|
Pixel Pitch
|
Pixel Density
|
|
SM-P39
|
3.9mm
|
65,536 px/m²
|
|
SM-P48
|
4.8mm
|
43,264 px/m²
|
|
SM-P63
|
6.25mm
|
25,600 px/m²
|
Engineered with wide viewing angles, robust industrial durability, and an extended operational lifespan to guarantee long-term asset value.
Where Innovation Meets Application: Popular Use Cases
The versatility of MicroMesh transparent LED Display makes it the go-to solution across diverse commercial sectors:

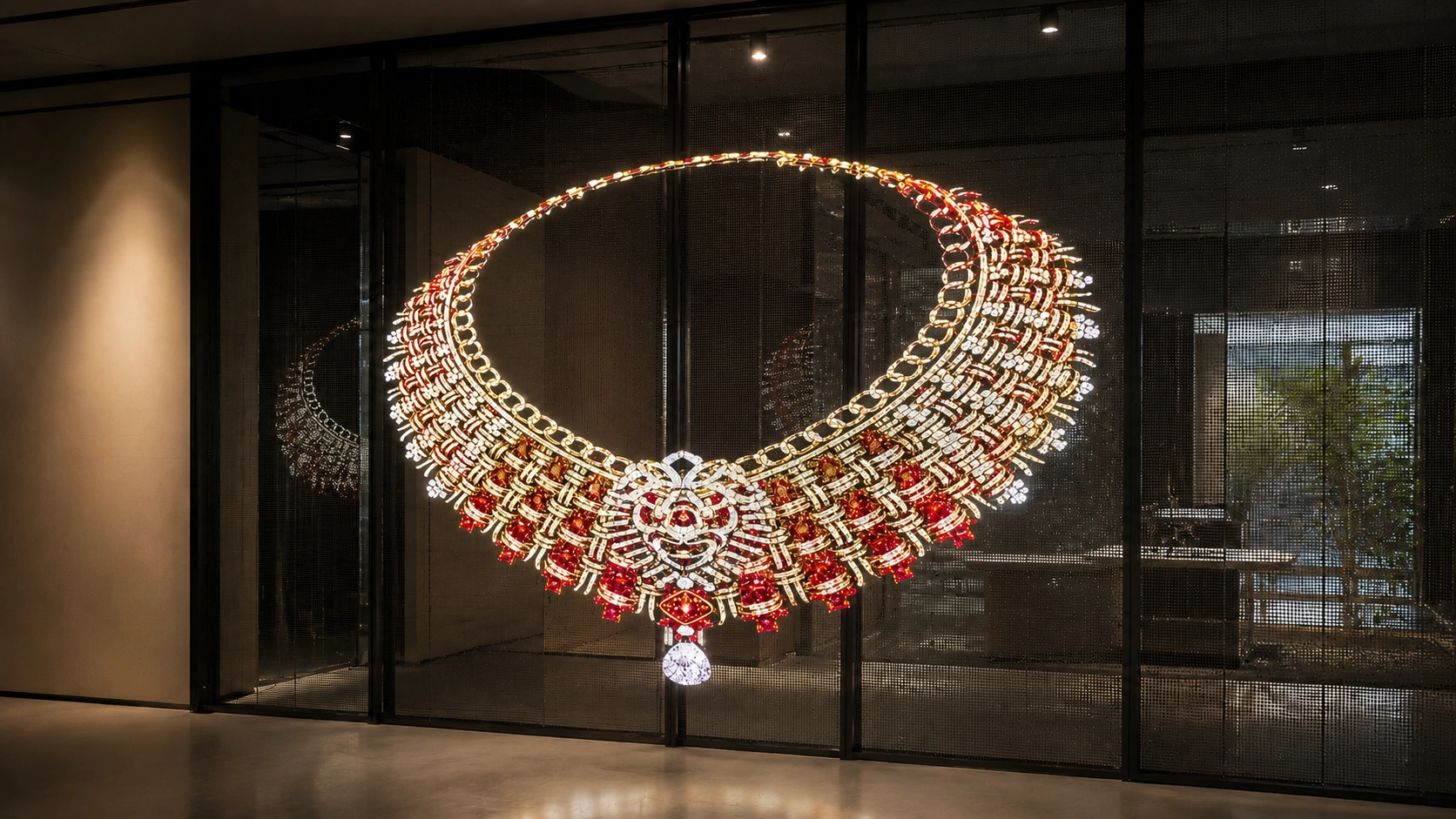

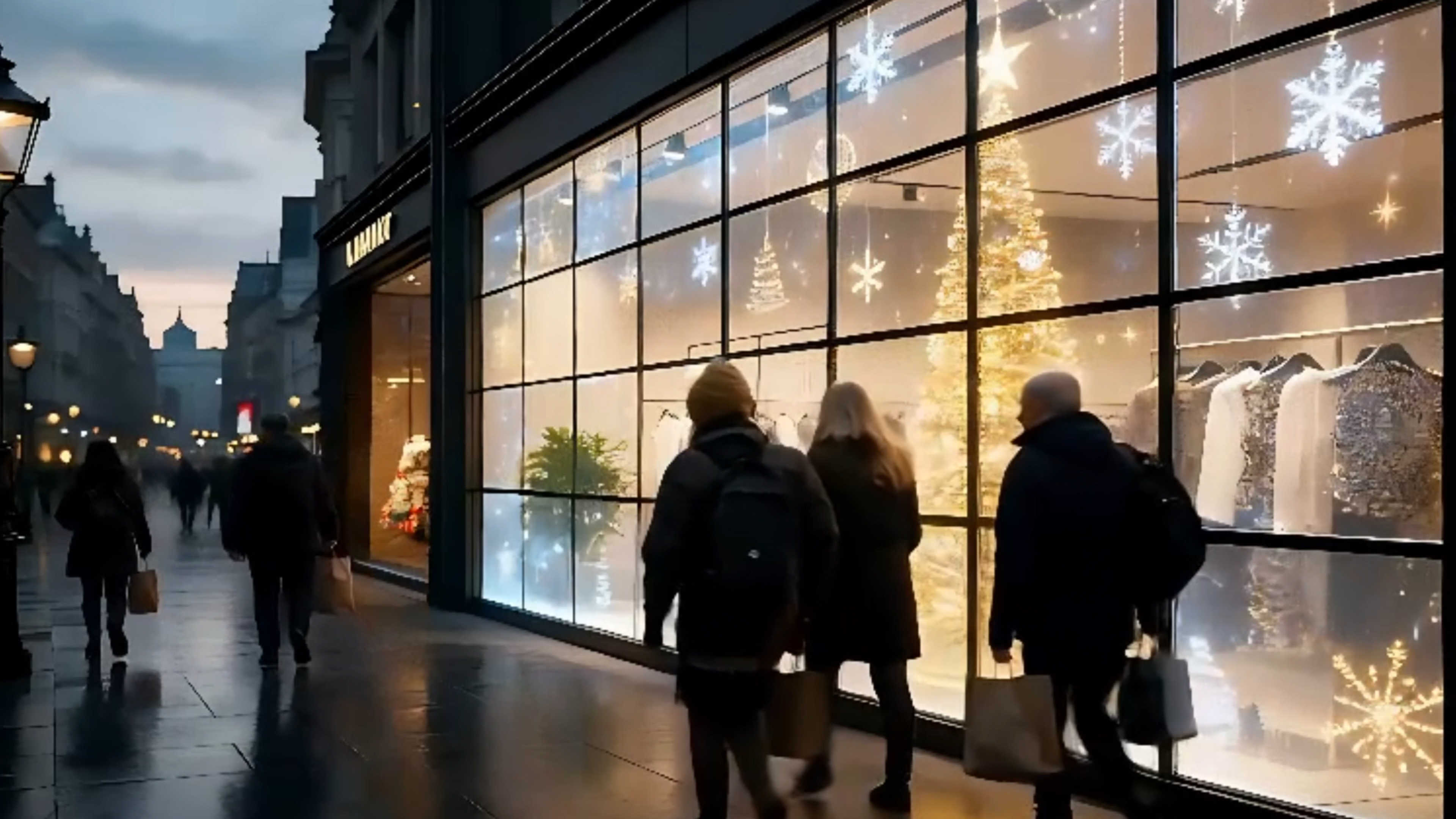

- Street-Level Retail Storefronts:Retail windows demand high-resolution content playback at close viewing distances. MicroMesh allows merchants to run dynamic product campaigns and 3D motion graphics directly behind the glass. Because the screen maintains transparency, pedestrians can view advertised digital items while concurrently observing the physical products arranged inside the showroom floor.

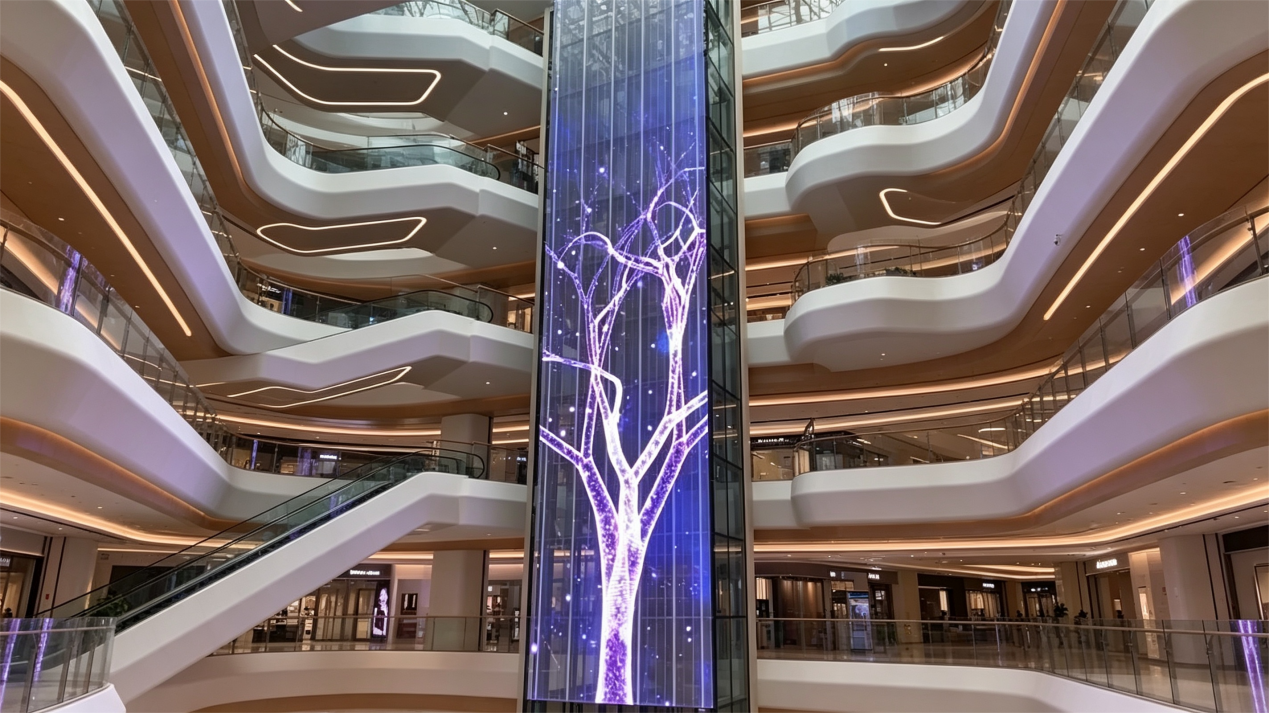

- Shopping Malls & Retail Atriums:Shopping malls rely on open sightlines and natural light to create an inviting retail atmosphere. Installing traditional solid screens can block store displays and dim the environment. MicroMesh converts central atrium glass balustrades or skylight structures into dynamic media surfaces for displaying captivating 3D animations, interactive digital art, and seasonal campaign visuals. This creates an engaging, shareworthy landmark that draws foot traffic and invites photos while keeping surrounding storefronts fully visible and well-lit.
- Cultural & Exhibition Venues:Exhibition spaces demand display solutions that engage audiences with exhibits without physically interfering with the displayed objects. MicroMesh panels mounted behind glass partitions serve as a digital overlay layer. Exhibitors can overlay animated schematics, descriptive graphics and archival footage onto physical exhibits. It creates immersive, multi-layered storytelling experiences while keeping all exhibits fully intact and untouched.

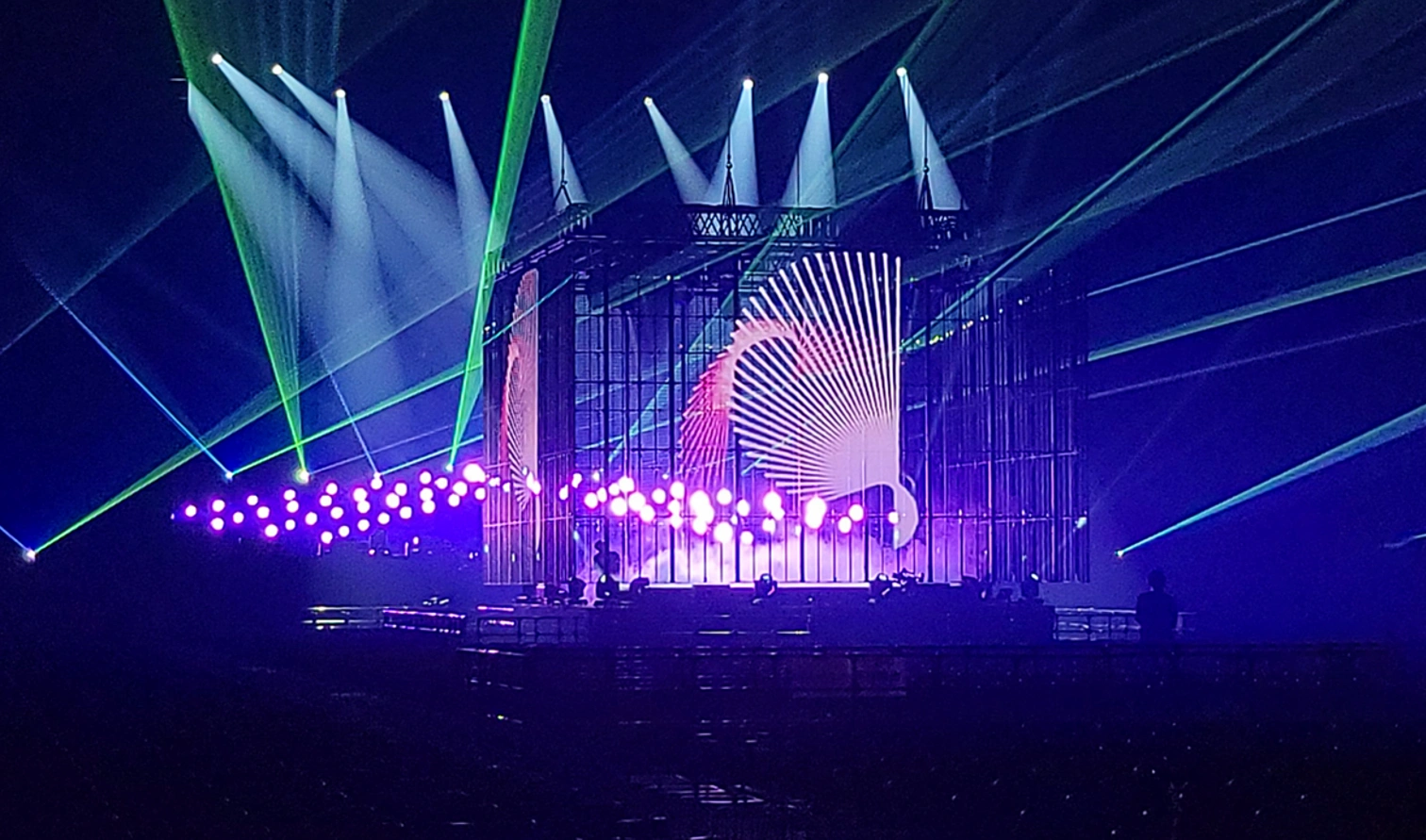

- High-End Events & Stage Productions:MicroMesh transforms flat stage backdrops into multi-layered visual spaces for concerts, fashion shows, and broadcasts. Its transmissive structure lets lighting beams, haze, and performers interact with the digital content, creating dynamic 3D depth. The lightweight modular design also allows rapid setup and teardown, simplifying event logistics.

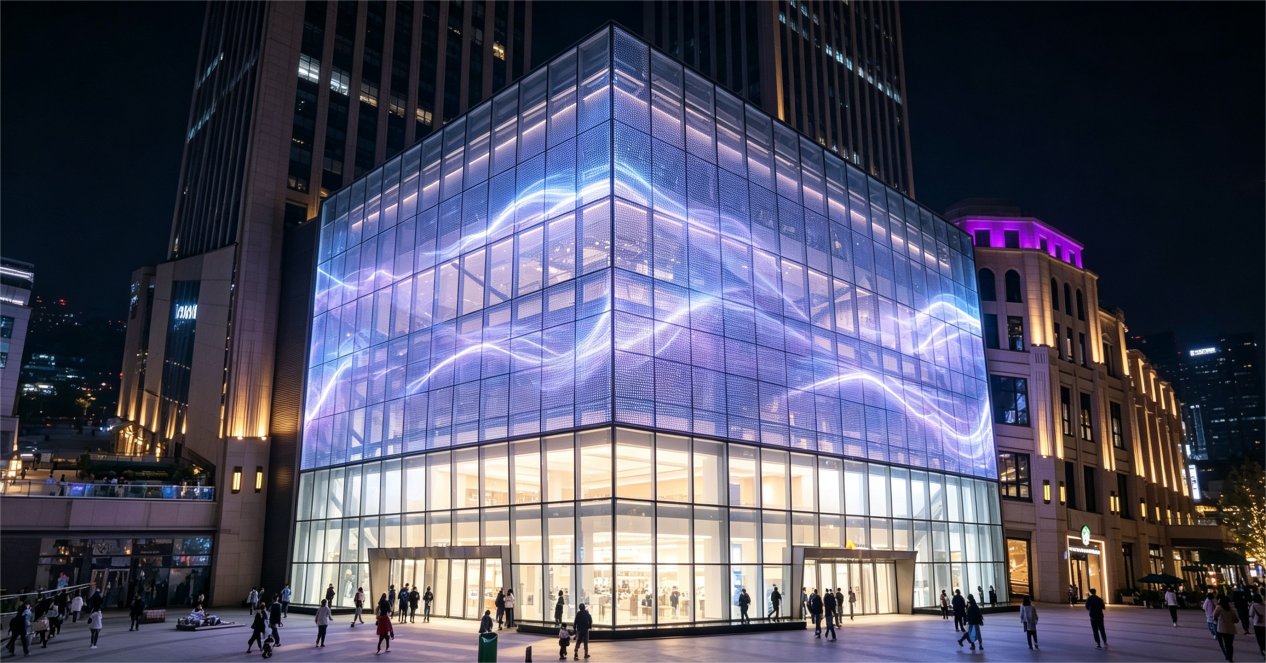

- Urban Scale Architectural Facades:For large-scale exterior curtain walls, MicroMesh provides a building-scale digital canvas. Installing the system on the interior side of the glass facade keeps hardware protected from rain, wind, and ambient pollution. This indoor placement lowers high-altitude maintenance costs, maintains clean exterior aesthetics, and keeps tenant spaces bright and open during daylight hours.
Financial Drivers: Maximizing Your Long-Term ROI
Investing in MicroMesh isn't just an equipment purchase—it's a strategic financial decision. Its specialized design delivers measurable cost advantages throughout the entire operational lifespan of the system:
- Upfront Structural Savings: By eliminating the need for heavy structural steel fabrication and extensive engineering modifications, MicroMesh reduces initial mounting expenditures and structural costs. This streamlined integration approach allows for a high-impact digital presence with a significantly lower entry cost.
- Passive Thermal Efficiency: The open-strip architecture promotes natural air convection, allowing heat to disperse naturally and reducing the reliance on high-power cooling systems. When combined with high transparency that preserves natural indoor daylight, this dual-efficiency model helps optimize ongoing operational energy expenditures.
- Easy Internal Maintenance: The modular design allows for "Easy Internal Maintenance," meaning all servicing is performed conveniently from within the venue without the need for external high-altitude equipment. Modular control units and components can be quickly accessed and swapped, significantly reducing long-term maintenance labor costs and system downtime.
Why Choose Seekway Innovations
Seekway Innovations is a manufacturer with many years of experience in LED display technology. The company offers a range of products including transparent LED displays, 3D LED displays, and architectural lighting solutions.
If you are looking for a reliable transparent LED display, lightweight transparent LED, or high transparency LED solution, contact the Seekway Innovations today for detailed information, technical support, and customized recommendations.
