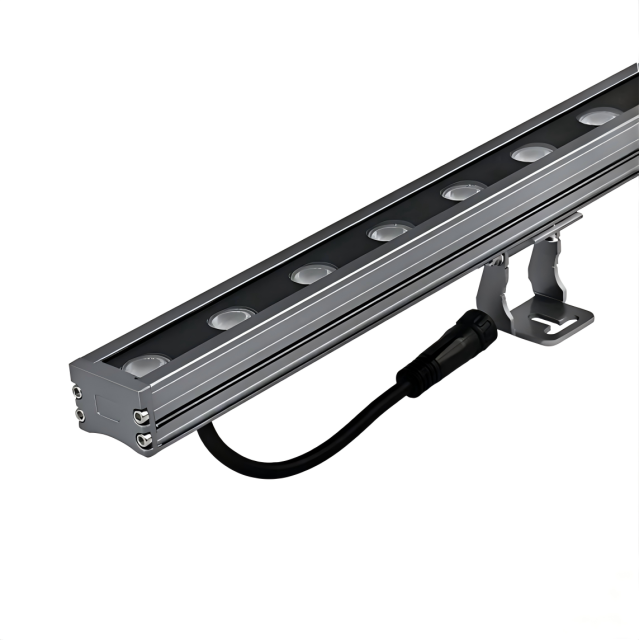

CW36 Wall Washer

  • Adopts precision optical design for even light distribution
  • Supports RGB / RGBW / single CCT (2700K-6500K), programmable control to achieve dynamic effects like gradient, color jump, and flowing light.
  • Multiple installation options: recessed, surface-mounted, or suspended, adaptable to various architectural structures.
  • IP66/IP67 protection rating, dustproof and waterproof, ensuring stable long-term operation outdoors even in harsh weather conditions.
  • Seekway CW36 Wall Washer for outdoor lighting project
  • Seekway CW36 Wall Washer for outdoor lighting project

READY TO GET A SAMPLE?

Specifications · 双端表头20% + 第一行全加粗
LED Specifications
Model CW36-18/6O1 CW36-24/6O1 CW36-18/6D3 CW36-24/6D3 CW36-24/6D4
Input Voltage DC 24V
Pixel Composing 6 LEDs /Pixel
LED Quantity 18pcs 24pcs 18pcs 24pcs 24pcs
LED Color Monochrome Monochrome RGB RGB RGBW
Control Mode On/Off On/Off DMX512 DMX512 DMX512
Power Consumption 18W 24W 18-24W 24-36W 24W-36W-48W
Grey Scale 256
Beam Angle 30°/ 60°/Customizable
Size W36*H26*L995mm
Surface Color Dark Gray
Cover Glass
Shell material Stretched aluminium
PCB material Aluminium substrate
Ingress Protection IP65
Operating Temp. -20℃—60℃
Service life >50000h

Download

Luminosity Distribution

Installation Method

The power supply can handle up to 12 devices on one route, depending on the power capacity of the supply.
