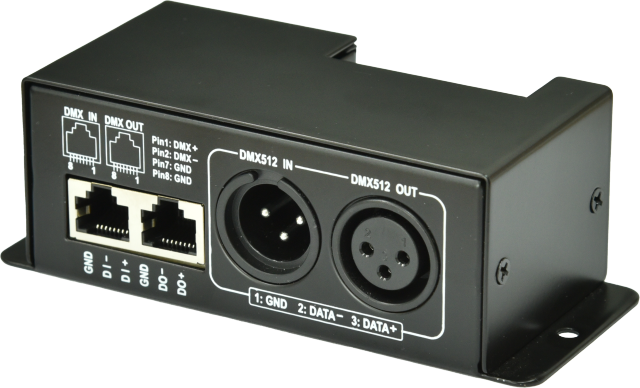

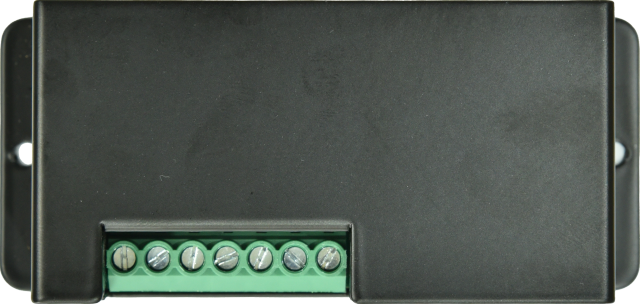

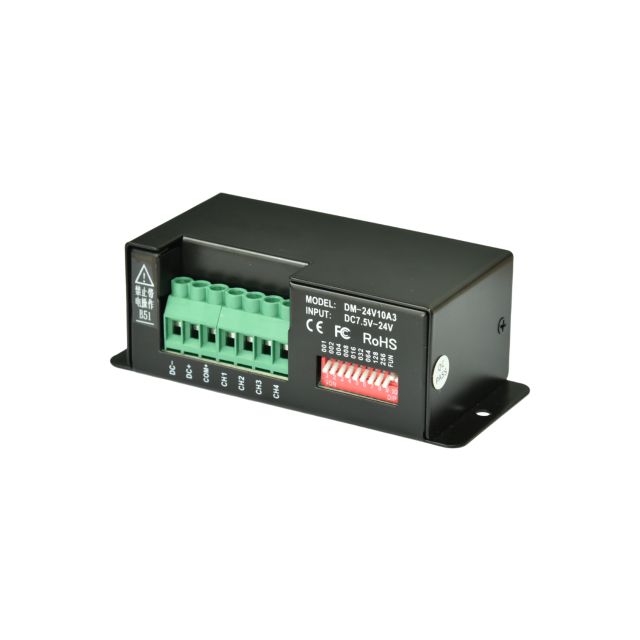

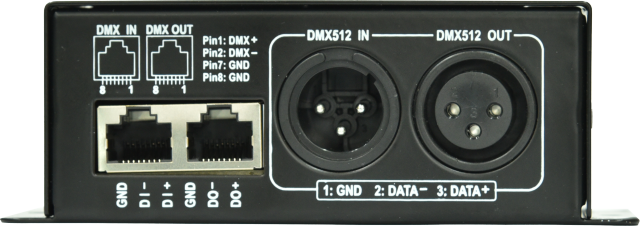

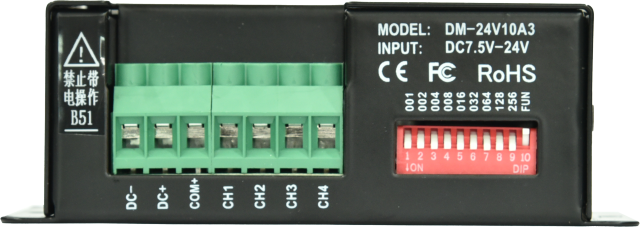

DMX Low-Voltage External Control 4-Channel Constant Voltage Driver
- The decoder adheres to the DMX512 international standard protocol.
- Over-temperature protection.
- Port refresh rate up to 4K.
- Decoder channel addresses can be freely set.
- Modular design for flexible combination.
- Capable of operating as a standalone controller.
- Enhanced smoothness for low-gray-level changes.
The SEEKWAY DM10R is a basic decoder that adheres to the DMX512 international standard protocol. It can precisely control RGB 3-primary-color lighting fixtures, equipped with a protected RS485 signal conversion circuit to achieve delicate brightness control. With its high-speed port refresh rate and enhanced smoothness of low-gray-level changes, it ensures the rapid and accurate transmission of signals. It also features anti-reverse and short-circuit protection functions to ensure safe usage. Moreover, it supports connection with a master controller for remote control, making it an ideal choice for various occasions such as professional stage lighting, architectural lighting, and commercial lighting.
| Input Voltage: | DC7.5～24V | Transmission Protocol: | DMX512 |
| Output Current: | MAX 10A per channel | Net Product Weight: | 270g |
| Output Power： | 720W | Product Dimensions: |
125L*55W*45H(mm) |
| Gray Scale Levels: | 256 levels corrected to 65536 levels, Gamma 2.2 | Operating Temperature: | -25℃～65℃ |
