Home > All Collections > 3D LED Cube > Standard 3D Cube > QM56D

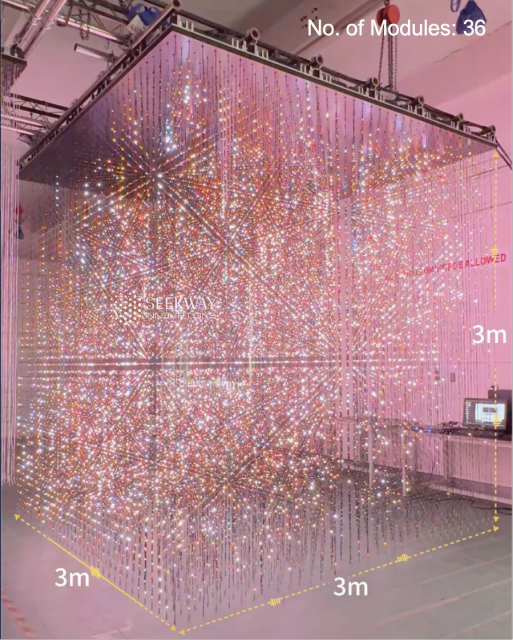

  • QM56D,QM56D 6x6 Modular 3D LED Cube Controller | Commercial Exhibition

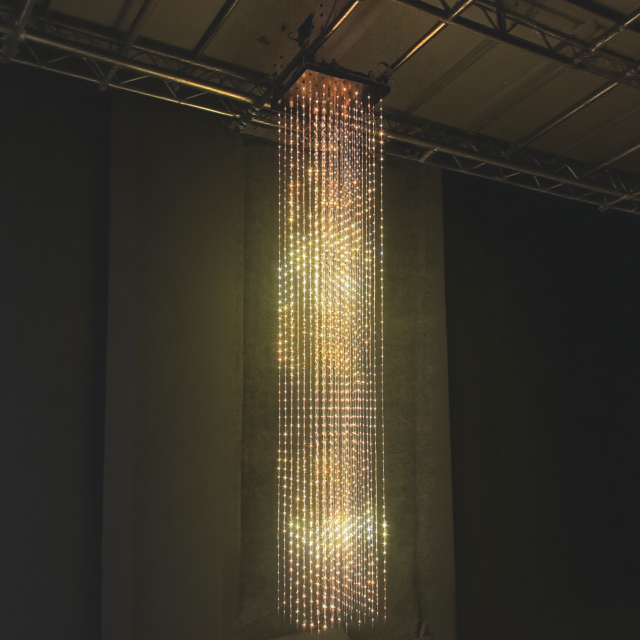

  • Seekway QM56D 3D qFiber Volumetric LED Display module, suitable for exhibition/museum/commercial/stage lighting
  • QM56D,QM56D 6x6 Modular 3D LED Cube Controller | Commercial Exhibition
  • Seekway QM56D 3D qFiber Volumetric LED Display module, suitable for exhibition/museum/commercial/stage lighting

QM56D

  • 6x6 Standard Modular Cube
  • Size：50×50×300cm (LWH, Height Customizable)
Get a quote
  • QM56D,QM56D 6x6 Modular 3D LED Cube Controller | Commercial Exhibition
  • Seekway QM56D 3D qFiber Volumetric LED Display module, suitable for exhibition/museum/commercial/stage lighting
Product Specifications – QM56D
Product Specifications
Item QM56D
Display Size 50*50*300cm (LWH, Height Customizable)
Light String Qty 6×6 = 36
Total Voxel 2160
Horizontal Pitch 8.3cm
Vertical Pitch 2–10cm
Voxel Compose 1pcs DC5V RGB LED 1pcs DC12V RGB LED
Total Power 389W 216W
Input Voltage AC220V AC110V / 220V
Cabinet Material Aluminum + Steel
Control Method Seekway 3D Player / HDMI

Download

Seekway Innovations Technology Co., Ltd.

Ready to use our 3D LED Cube in your project?

Contact

Frequently Asked Questions

3D Volumetric LED Display

What is a voxel?

A voxel, short for “Volume Element” (also known as volumetric pixel), is the smallest fundamental unit in three-dimensional space. Similar to how a pixel forms the basis of 2D images, a voxel possesses real X, Y, and Z coordinates, giving it actual volume and depth to create genuine three-dimensional visuals.

Pixel vs Voxel: What’s the Difference?

Pixel: A two-dimensional element that exists only on an X-Y plane, forming the flat images we see on regular screens and displays.
Voxel: A true three-dimensional unit arranged in an X-Y-Z matrix. While traditional 3D films and VR only simulate depth through visual tricks, voxels enable real volumetric displays that can be viewed naturally from any angle without glasses.

How Do Voxels Work in 3D Volumetric LED Displays?

In Seekway’s 3D LED Cube series of volumetric LED displays, each individually illuminated LED point functions as a precise voxel. Utilizing highly transparent materials, modular design, and patented high-resolution technology, our solutions achieve up to 80% transparency, stunning 360° light and shadow effects, and exceptional resolution and precision.

Whether built as cubes, custom shapes, or long-span structures, they deliver true floating 3D content in physical space. Powered by the Seekway 3D Player 3.0 software, the system supports advanced interactions such as motion sensing, sound control, AI interaction, and music visualization, creating powerful immersive experiences for audiences.This represents a real dimensional leap from traditional 2D displays to authentic 3D volumetric technology!

Explore our 3D LED Cube series: https://www.seekway.com/collections/3d-led-cube
