Inside Shenzhen MixC World's 3D Light Cube: How LED Pixel Tubes Redefined Retail Lighting

When Lighting Became a Landmark

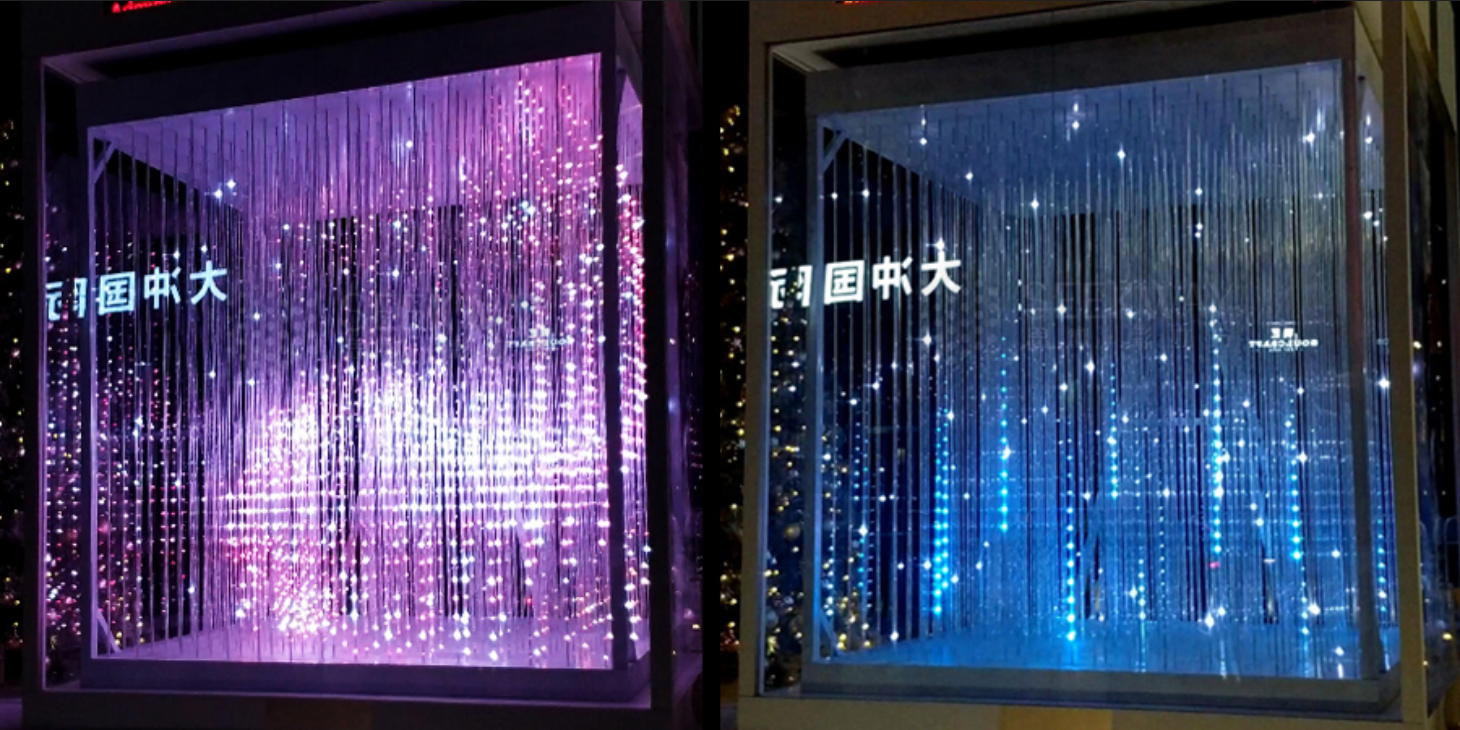

Stepped inside Shenzhen MixC World mall, and a 2.6-meter glowing cube commanded the atrium — 8,192 points of light flowing through three-dimensional space. This was the mall's "Light Cube" installation, and it is more than a light fixture. It is a benchmark project that pushed 3D LED pixel tube technology to the forefront of retail lighting design.

The cube was built from 256 transparent tubes, each φ11mm in diameter, arranged in a 16 × 16 × 32 three-dimensional matrix with an 80mm pitch. The result was a volumetric light field visible from all 360 degrees. Visitors stopped, photographed, and shared — and the installation itself became the mall's immersive lighting experience gateway, converting foot traffic into brand exposure. In an era where shopping mall lighting had to compete with online retail for attention, installations like this represented a strategic shift: lighting was no longer just illumination — it was the experience itself.

3D qTube: The Core Technology Behind the Cube

The MixC World Light Cube used Seekway Innovations' 3D qTube series — a line of LED pixel tubes engineered for high-end commercial scenes. Key features include:

• Patented mortise-and-tenon connection: A self-developed, nationally patented structural design that achieves seamless joints between tubes, with connector dimensions matching the tube diameter for a visually unified appearance. Unlike traditional LED tube systems that rely on bulky external connectors, the qTube eliminates visual breaks entirely

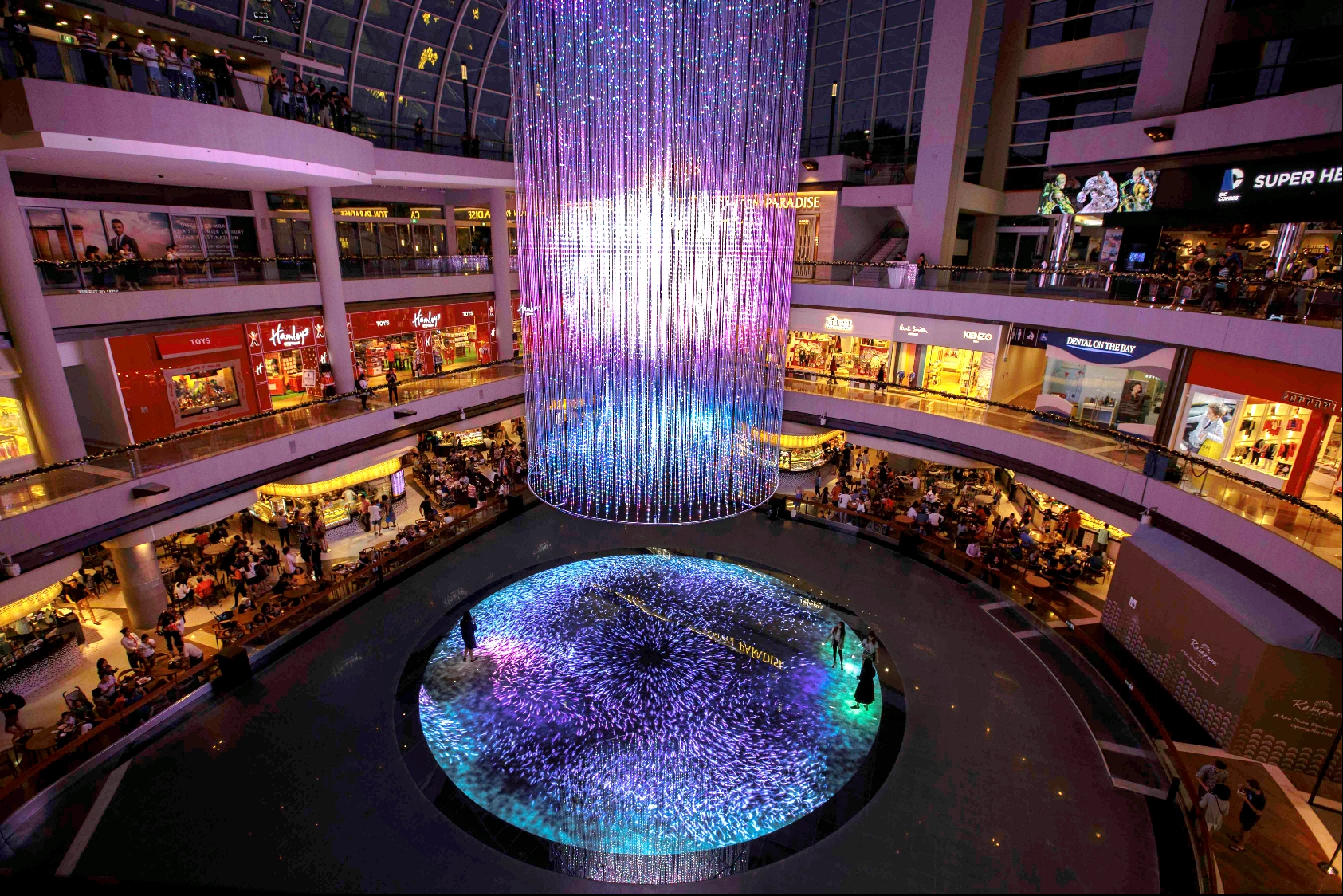

Marina Bay Sands Shopping Mall in Singapore

• Ultra-long integrated design: A single LED strip can extend up to 20 meters with no intermediate joints, with signal and power fed from one end only. This single-side architecture dramatically simplifies installation and reduced potential failure points

• 360°+1 immersive visuals: Tubes emitted light in all directions, combined with 3D arrangement to create an omnidirectional volumetric lighting effect. Every viewing angle revealed a different pattern, giving the cube depth and movement that flat displays cannot achieve

• High flame-retardant PC material: Surface options include transparent, frosted, or scattering textures, meeting commercial fire safety requirements for indoor public spaces

The qTube series spanned six models from QT-7 to QT-25, each targeting different viewing distances and installation scales. The MixC World project used the QT-11 model (φ11mm), with 2 SMD5050 LEDs per voxel, a pitch range of 30–120mm (project used 80mm for an optimal balance of resolution and transparency), 0.43W per voxel power consumption, and DC 7.5V input voltage. With 8,192 voxels at 0.43W each, total power consumption was approximately 3.5 kW — modest for an installation of this visual scale.

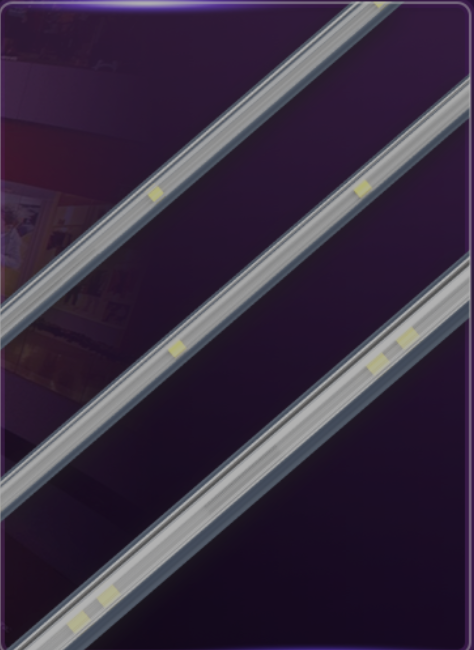

Seekway 3D qTube solution

Control Architecture: Dual-Channel 3D Player and Art-Net

The Light Cube's effect control employed a dual-channel approach: Seekway's proprietary 3D Player software handled 3D pixel mapping and effect sequencing, while Art-Net protocol integration allowed connection to professional consoles like Madrix for real-time performance control.

3D Player was mapping and playback software designed specifically for three-dimensional LED installations. Unlike conventional 2D pixel mapping tools that worked on flat X-Y grids, 3D Player handled coordinate mapping for volumetric pixel arrays like the 16 × 16 × 32 matrix. It projected flat effect assets — videos, images, generative patterns — into 3D space with rotation, scaling, and distortion transforms that accounted for the physical depth of each tube. This was what allowed 8,192 individual pixels to display coherent, flowing imagery that appeared to move through the volume rather than across a surface.

Effect files exported to an SD card enabled the controller to play back autonomously in a loop — no PC connection was required. For a mall operating around the clock, this standalone reliability was essential. For special events or seasonal campaigns, an operator could switch to live Art-Net control via Madrix, programming custom shows on the fly, then return to autonomous SD card playback for daily operation.

Commercial Value: From Light to Foot Traffic

The commercial value of 3D light cube installations in retail spaces manifested across three dimensions:

• Traffic Generation:The unique visual effect was a natural asset for social media sharing. Visitors spontaneously photographed and posted, creating viral organic exposure for the mall. Compared to traditional static decorations, dynamic 3D lighting installations achieved significantly higher check-in and sharing rates. Every photo shared extended the mall's reach to that person's social network at zero cost. This engagement advantage translates seamlessly to large-scale world expos. Seekway Innovations delivered the immersive exhibition project France Pavilion Osaka Expo, a venue that welcomed over 4 million attendees throughout the event.

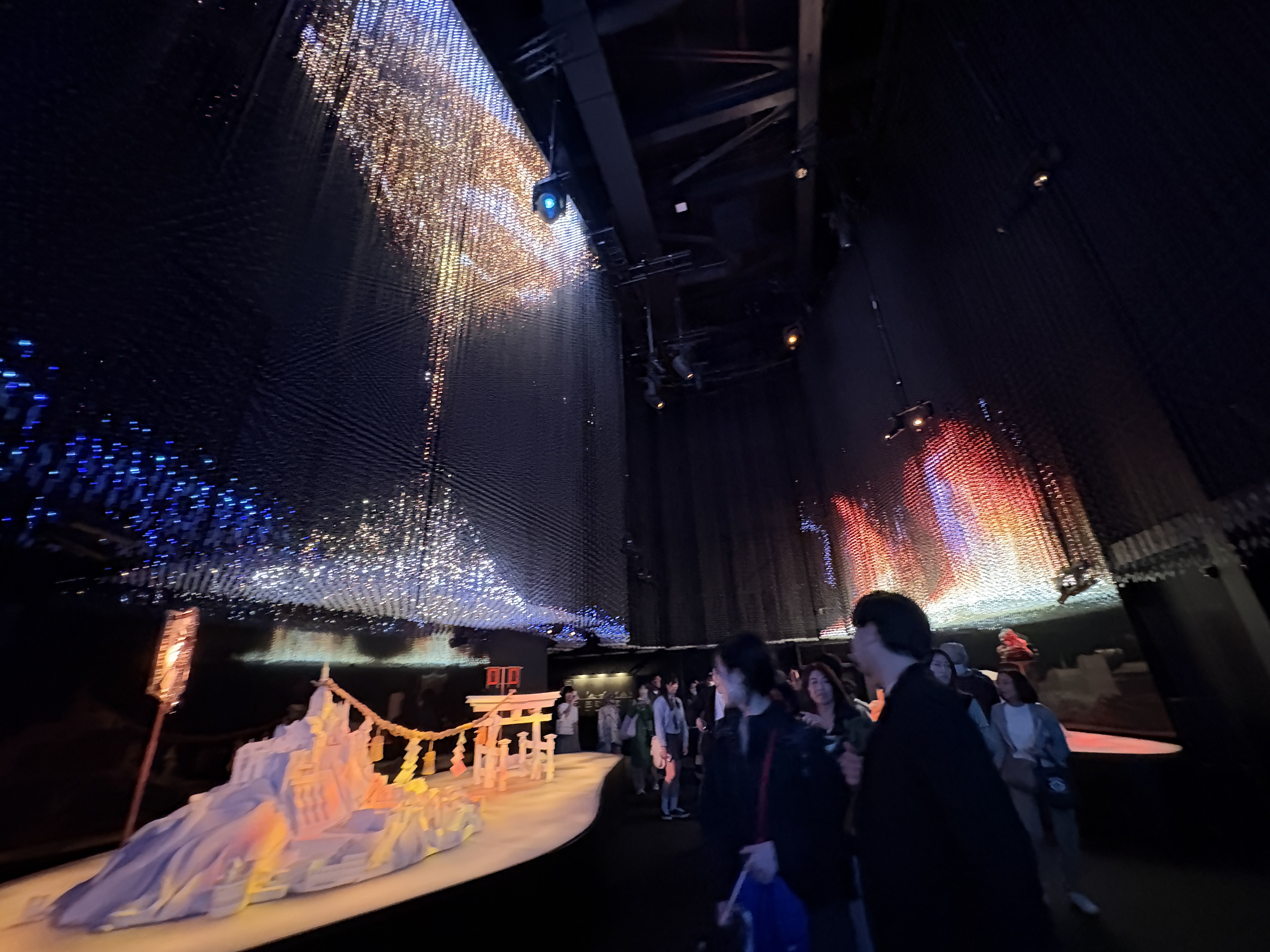

France Pavilion Osaka Expo in Japan

• Dwell Time Extension: Interactive lighting effects extended the time visitors spent in a specific zone, indirectly boosting foot traffic and conversion rates for nearby retail tenants. The Light Cube's 360-degree viewing characteristic meant it attracted foot traffic from four directions simultaneously, spreading the benefit across multiple storefronts.


• Brand Differentiation: In an increasingly homogeneous commercial real estate market, signature lighting installations became a mall's visual identity card. Seekway Innovations held full intellectual property rights to qTube's structure, software, control system, and cloud platform — ensuring that each installation was unique and could not be trivially replicated by competitors.

From MixC World to Broader Commercial Applications

The qTube's application extended beyond shopping malls. Its modular design supported configurations ranging from a 2.6-meter light cube to large-scale building facades, flagship brand stores, and exhibition halls. The QT-25 model (φ25mm) supported a dense 10mm pitch for close-viewing fine-detail displays, while the QTR-15 featured a rectangular profile for installations requiring larger luminous surfaces.

For scenarios requiring live control, qTube was compatible with mainstream Art-Net consoles such as Madrix, integrating into large-scale lighting control networks. For fixed installations with daily playback routines, exporting effect files to an SD card enabled 24-hour autonomous looping without any computer connection — which was ideal for retail environments where IT resources were focused on point-of-sale systems rather than lighting maintenance. The high flame-retardant PC construction and sealed tube design also provided a foundation for weather-resistant outdoor deployments.

Technical Specifications at a Glance

All models feature high flame-retardant PC construction and support both Seekway 3D Player and Art-Net (Madrix) control methods.

Conclusion

The Shenzhen MixC World 3D Light Cube proves a simple point: when an LED pixel matrix evolves from a flat surface to a three-dimensional volume, lighting transcends its role as illumination and becomes the core medium of the commercial experience. Seekway Innovations' 3D qTube delivers a complete technical pathway — from product to deployment — through its patented mortise-and-tenon structure, ultra-long integrated design, and dual-channel control architecture. As shopping mall lighting continues to evolve from functional illumination toward experiential design, a sufficiently captivating commercial LED installation may generate more value for a retail space than any advertising screen ever could.
