Master Dual Wiring in Seekway's Magic Player software: Get More Effects from One Project

Introduction

Seekway's Magic Player software  is a professional animation and engineering design software tailored for LED lighting control. Featuring tools like Smart Windows for precise layout tuning and versatile online debugging, Magic Player allows designers to effortlessly map pixel wiring, create dynamic visuals, and manage custom patterns via its rich Asset Library. It is the ideal solution for simplifying workflows and unlocking creative potential in complex LED projects.

In LED lighting programming, a single wiring diagram often cannot meet all effect requirements. This tutorial shows exactly how to solve this problem by using two different wiring diagrams for the same project in Magic Player.

This guide demonstrates how to configure a square boundary layout for frame-looping scanning and a linear sequence for continuous chasing effects—maximizing design flexibility and unlocking diverse visual outputs on a single project.

Preparing the Square Frame Project

Start by creating your square model (each side 60 pixels, total 240 pixels) In Magic Player:

• Create a new project.

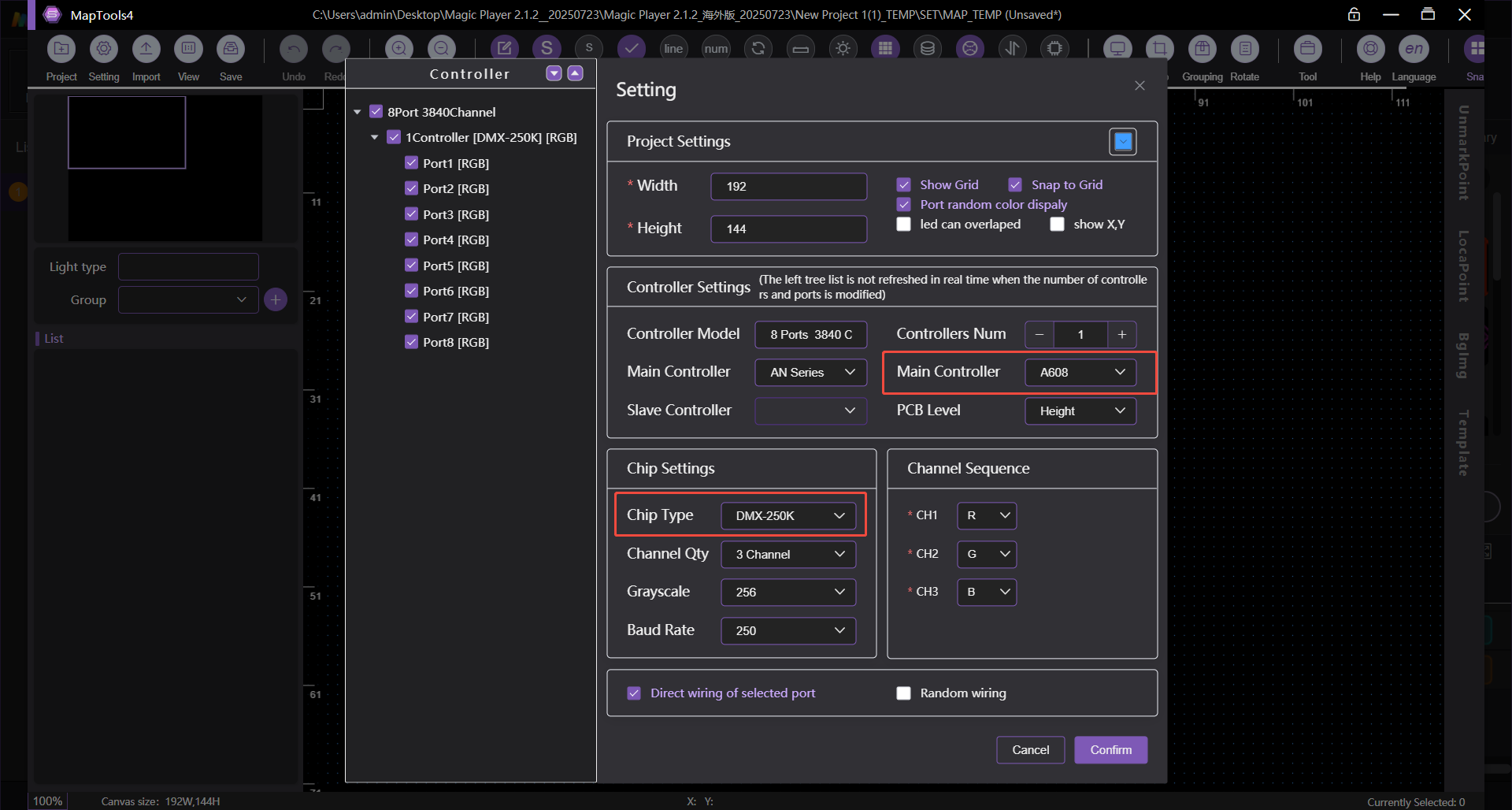

• Use model 482 (or match your actual controller/chip).

Draw the square wiring:

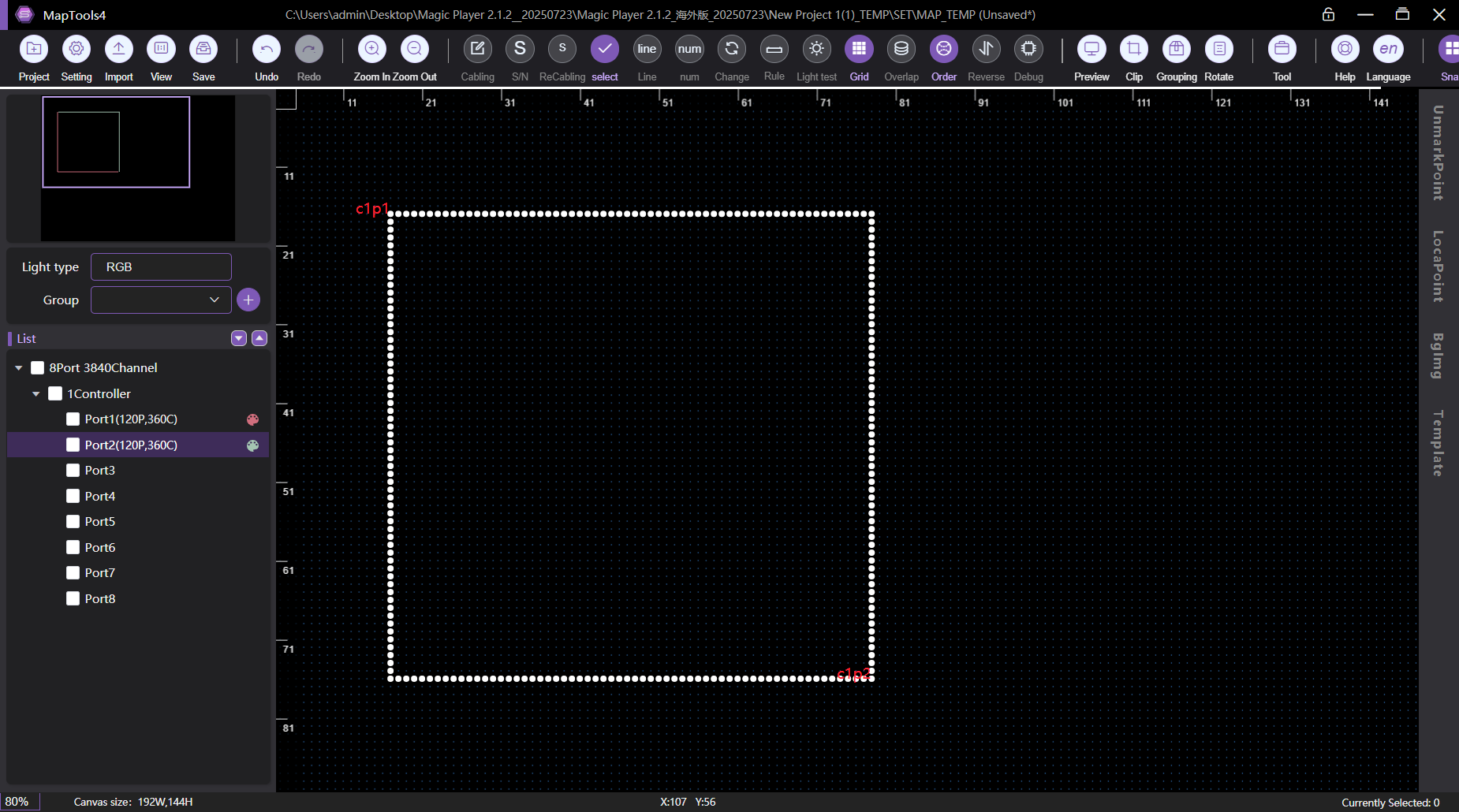

• Port 1 controls the first two sides (120 pixels)

• Port 2 controls the next two sides (another 120 pixels)

Follow the actual signal flow direction when drawing the wiring around the square.

Creating Circling Effects with Square Wiring

With the square wiring active:

• Open Advanced Effects.

• Choose a circling or rotating effect.

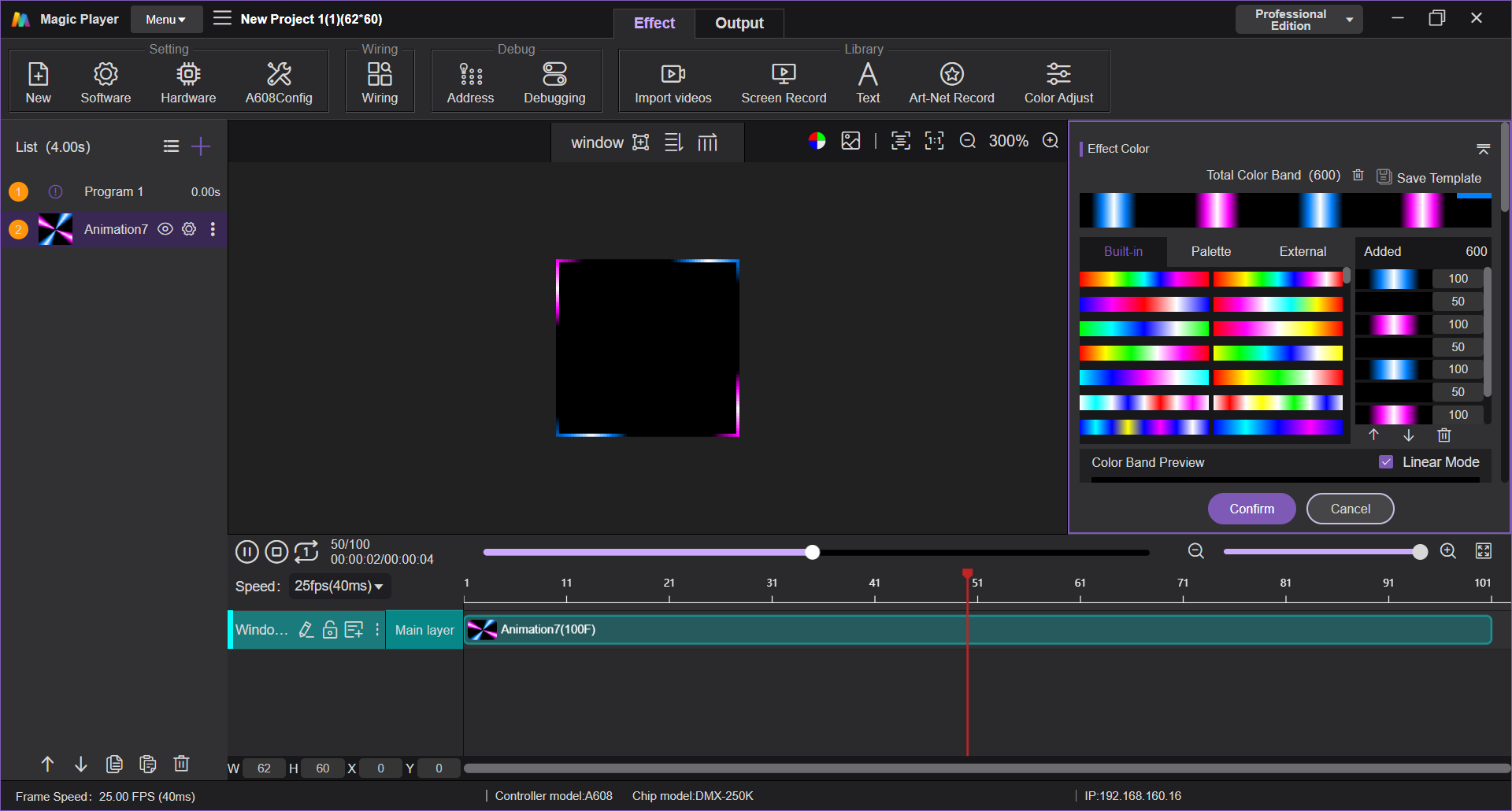

• Add color bands, adjust speed, and customize colors (you can delete unwanted colors or modify them directly).

• Add multiple colors and change lengths as needed.

You can achieve many nice rotating and gradient effects easily with this layout.

The Problem with Flowing Effects

However, creating a clean “one pixel at a time” flowing fill effect is difficult (or messy) with the square wiring. When you try it in Advanced Effects, other effects become chaotic and don’t display properly on the square shape.

Creating a Linear Wiring Diagram (240 Pixels Straight Line)

To solve this, create a second wiring layout optimized for flowing effects:

• Duplicate your project folder (e.g., copy “New Project 1” and rename to “New Project 2”).

• Open the duplicated project.

• Go to wiring mode and delete the existing Port 1 and Port 2 wiring.

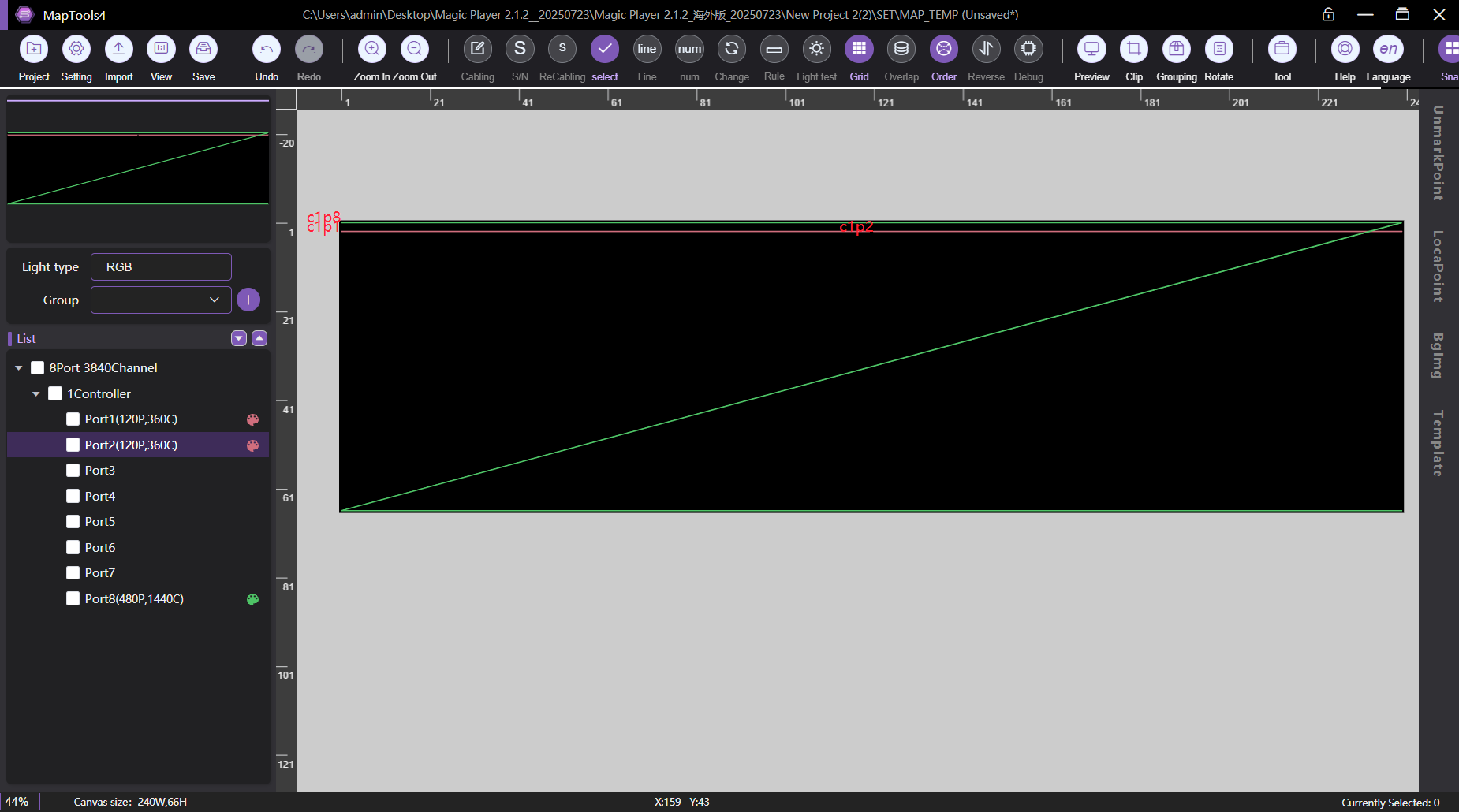

• Create a new linear wiring:Use quick wiring on Port 1 for 120 pixels in a straight line.

• Copy and place another 120 pixels on Port 2 right after it, making one continuous 240-pixel line.

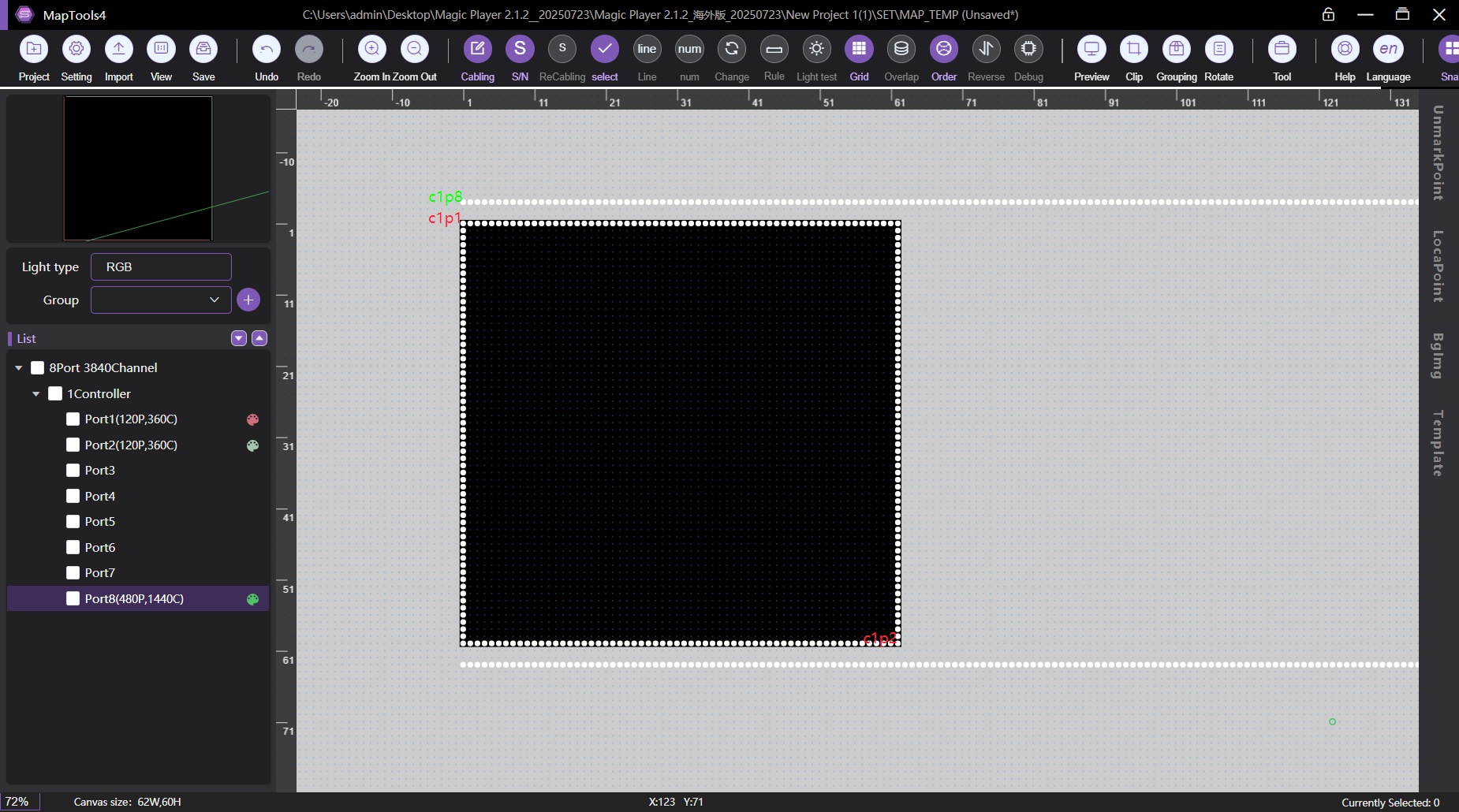

(Optional) Add virtual lines on Port 8 to create a rectangular canvas for better preview.

Programming the Flowing Water Effect

In the linear wiring project:

• Go to Advanced Effects.

• Add a push/flow effect.

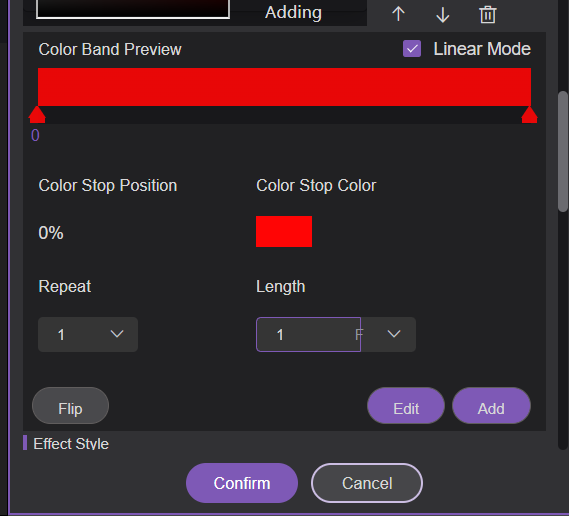

• Set the color band length to 1 for single-pixel movement.

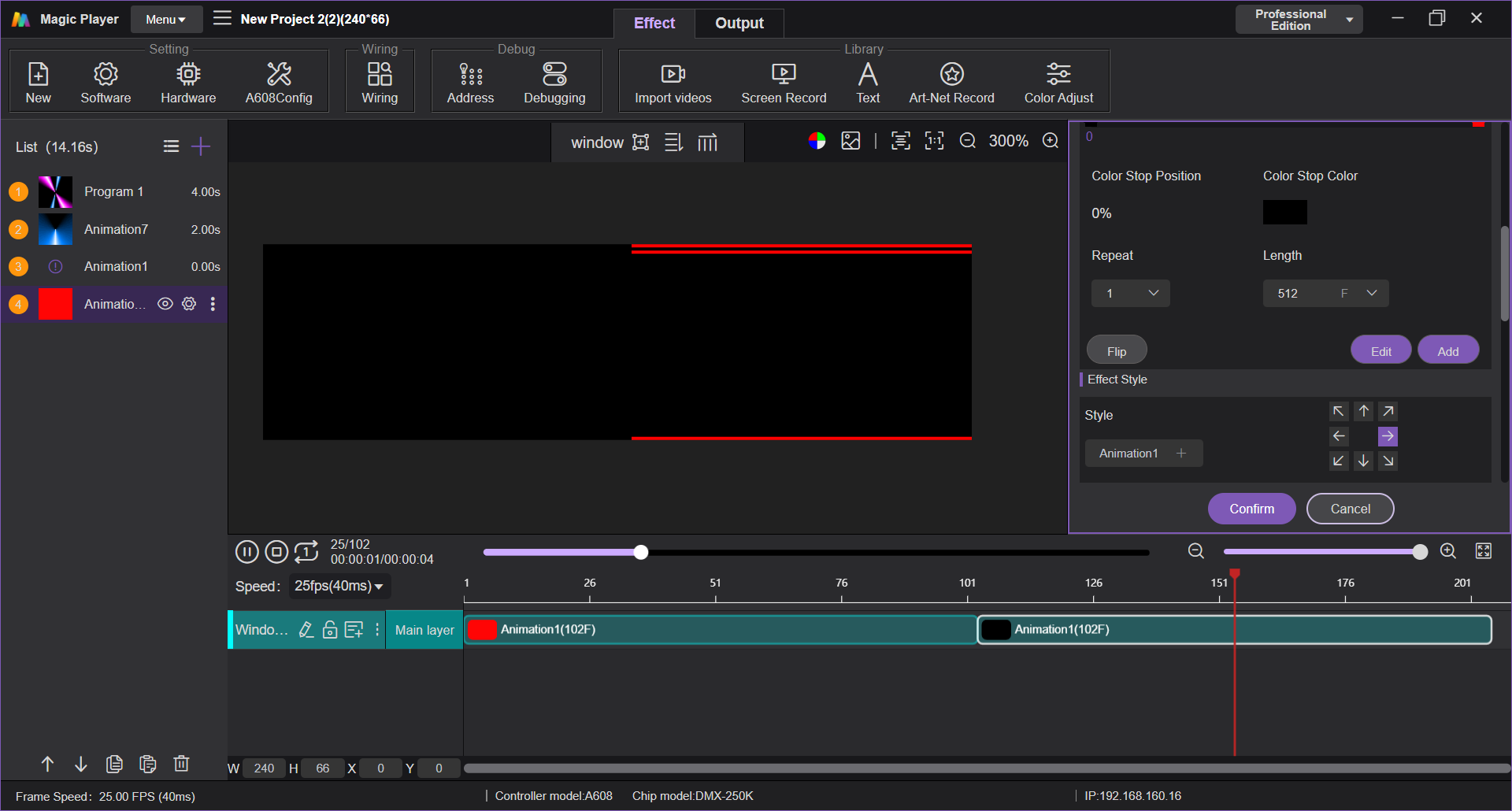

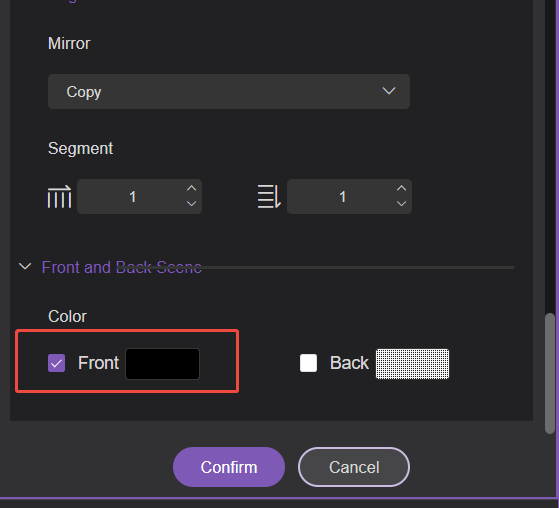

• Use a base color (e.g., red) on a black background so pixels appear one by one.

• Adjust speed (try 0.5 or 1 pixel per frame) until the fill completes smoothly across all 240 pixels.



Duplicate the timeline and create a reverse direction to make the pixels turn off one by one.

Test the animation — you should see a clean fill and wipe effect.

Converting and Importing the Effect

Now transfer the effect back to your main square wiring project:

• In the linear project, select the completed program.

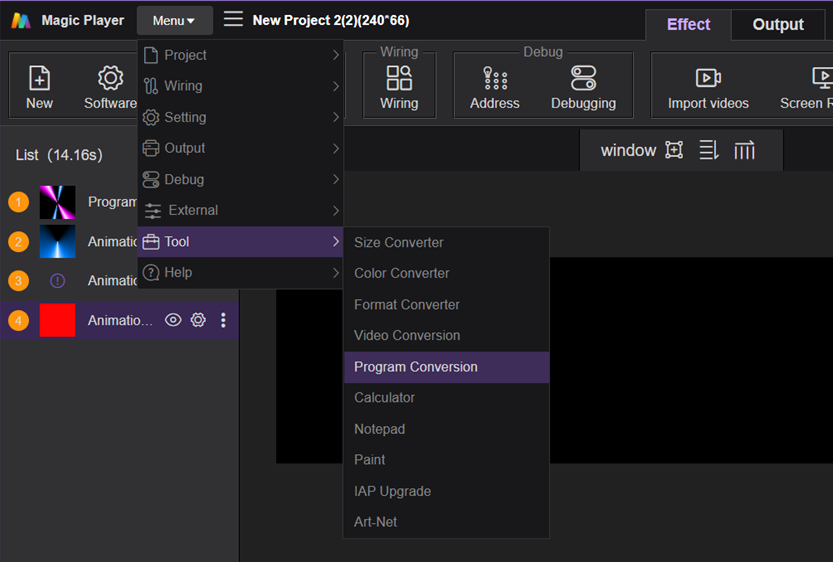

• Use the Program Format Conversion tool and convert it to BIN format.


• Open your original square wiring project .

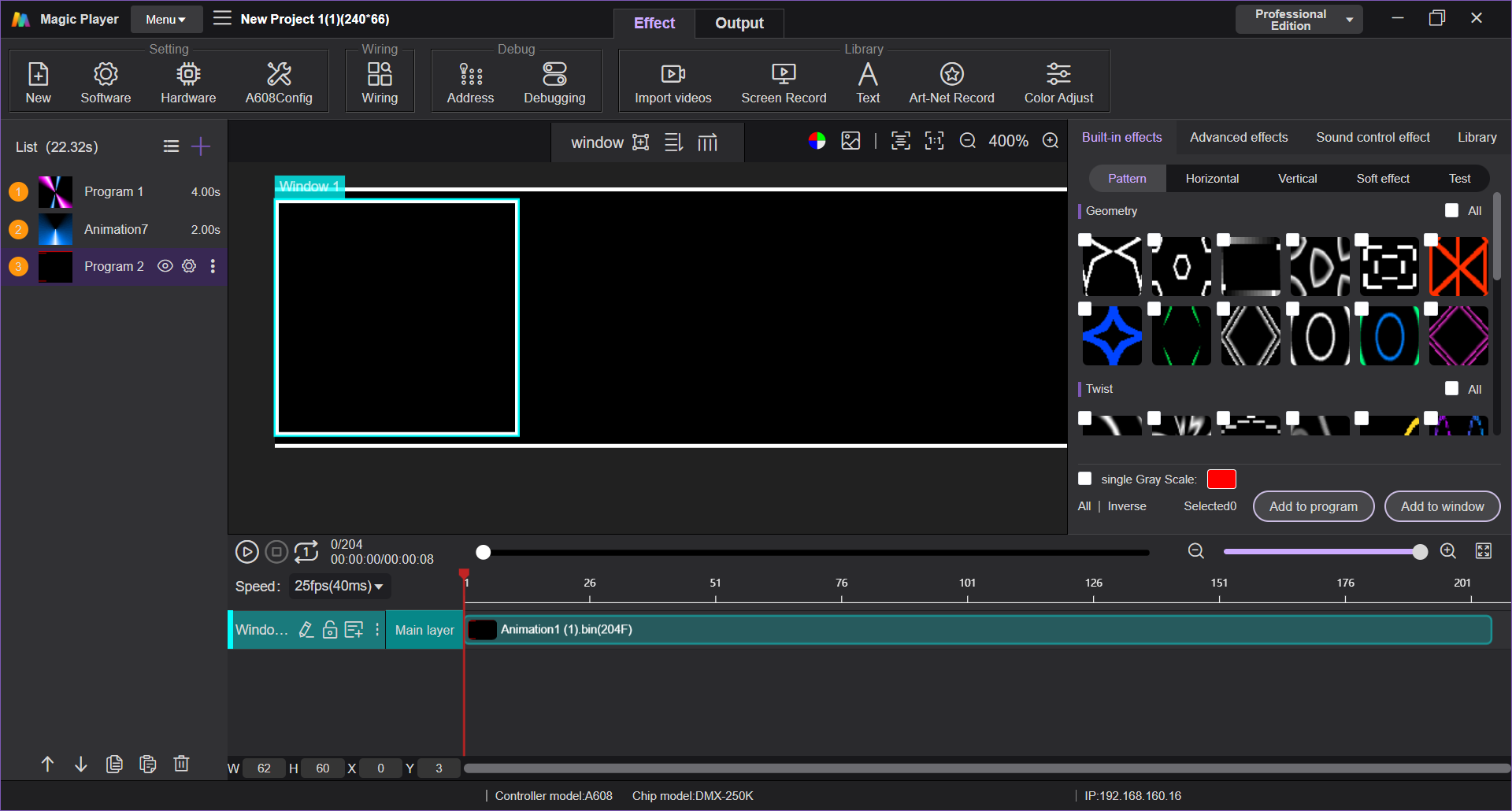

• Go to the Media Library → Import the BIN file (treat it like a video asset).

• Create a new program and add the imported BIN effect.

• Adjust the Preview Window size to match your actual square frame dimensions.

Play the effect. You will now see the smooth flowing fill working correctly on your square wiring layout.Square wiring for clean circling and rotating effects using Advanced Effects.

Ready to Create More Effects?

This "hybrid wiring" approach opens up a whole new workflow. It’s a simple yet effective way to bypass the limitations of a single layout and combine different effects. Try this handy trick in Magic Player today to make your lighting animations much more flexible!

For more tips, tutorials, and the latest updates on Magic Player, visit the official Seekway Innovations website and explore the full potential of this powerful lighting software.
