Breaking DMX Limits: The Ultimate Guide to Art-Net Protocol & LED Pixel Control

What Is the Art-Net Protocol?

The Art-Net protocol is an Art-Net-based lighting control protocol developed by Artistic Licence Engineering in 1998 and made available royalty-free. Its core function is to encapsulate traditional DMX512 data into UDP packets for transmission over standard Art-Net networks, thereby breaking through the limitations of DMX512 in transmission distance, bandwidth, and networking capability.

Art-Net acts as the ultimate bridge between DMX512 and Art-Net. Traditional DMX512 uses the RS-485 physical layer, which is limited to a maximum transmission distance of approximately 300 meters per link and only 512 channels in a single direction. In contrast, Art-Net leverages Art-Net to increase the channel count per link to 32,768 universes (each carrying 512 channels), supporting a theoretical total exceeding 16 million channels.

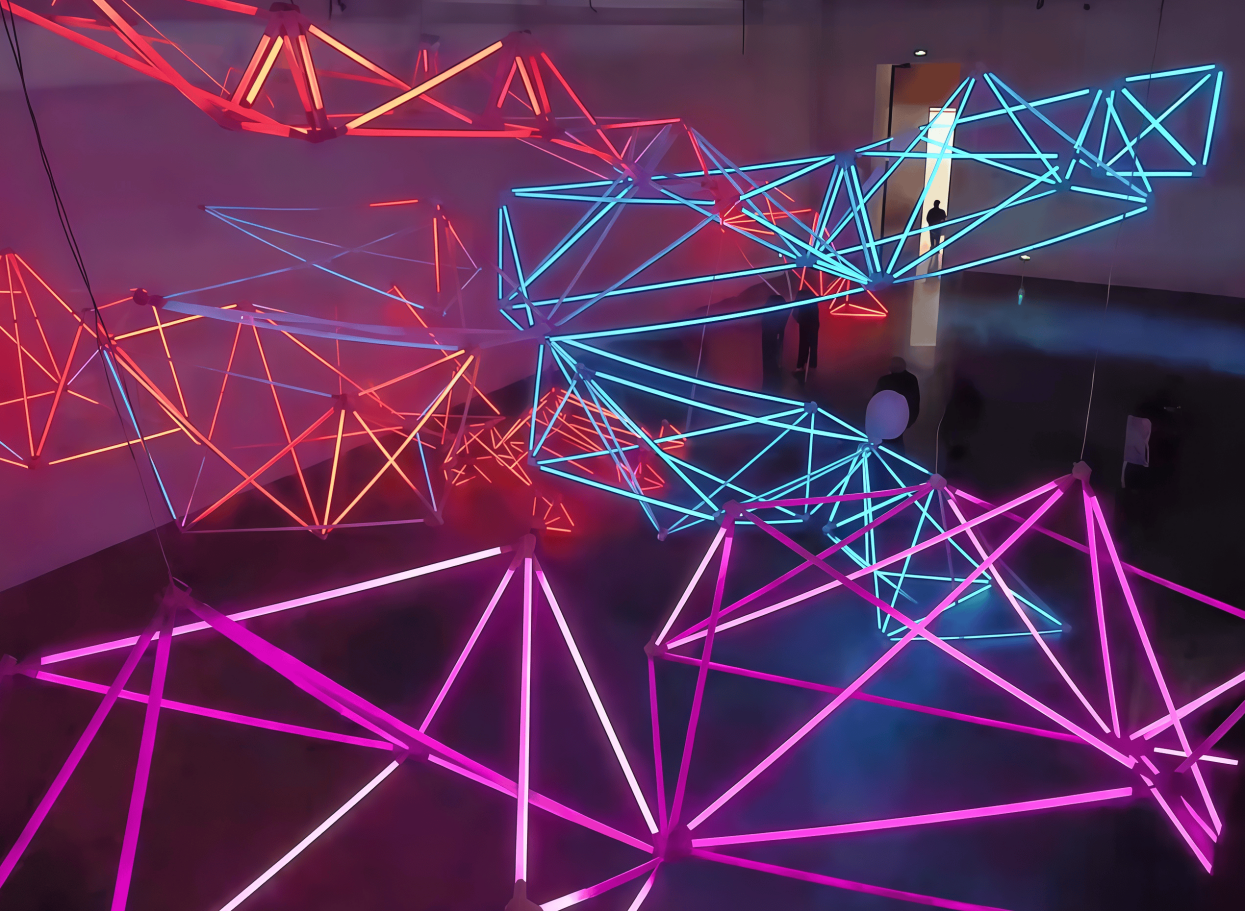

Seekway’s art installation is controlled via the Art-Net protocol

How Art-Net Works: Packets and Protocol Evolution

Art-Net communicates over UDP on port 0x1936 (decimal 6454). Devices on an Art-Net network generally fall into two categories:

• Controllers: Lighting consoles or PC-based software that generate control data.

• Nodes: Hardware devices (like Art-Net controllers) that convert Art-Net data back into DMX512 outputs for fixtures.

Art-Net vs. Traditional DMX512 Comparison

Art-Net Applications with Seekway A308 and A608

Seekway Innovations' A308 and A608 dual-mode controllers both natively support the Art-Net protocol, offering robust hardware solutions tailored for different application scenarios.

Seekway A308: Compact Embedded Controller

The A308 is a screenless dual-mode controller supporting 512 channels × 6 universes in Art-Net mode, outputting through 8 Ethernet ports.

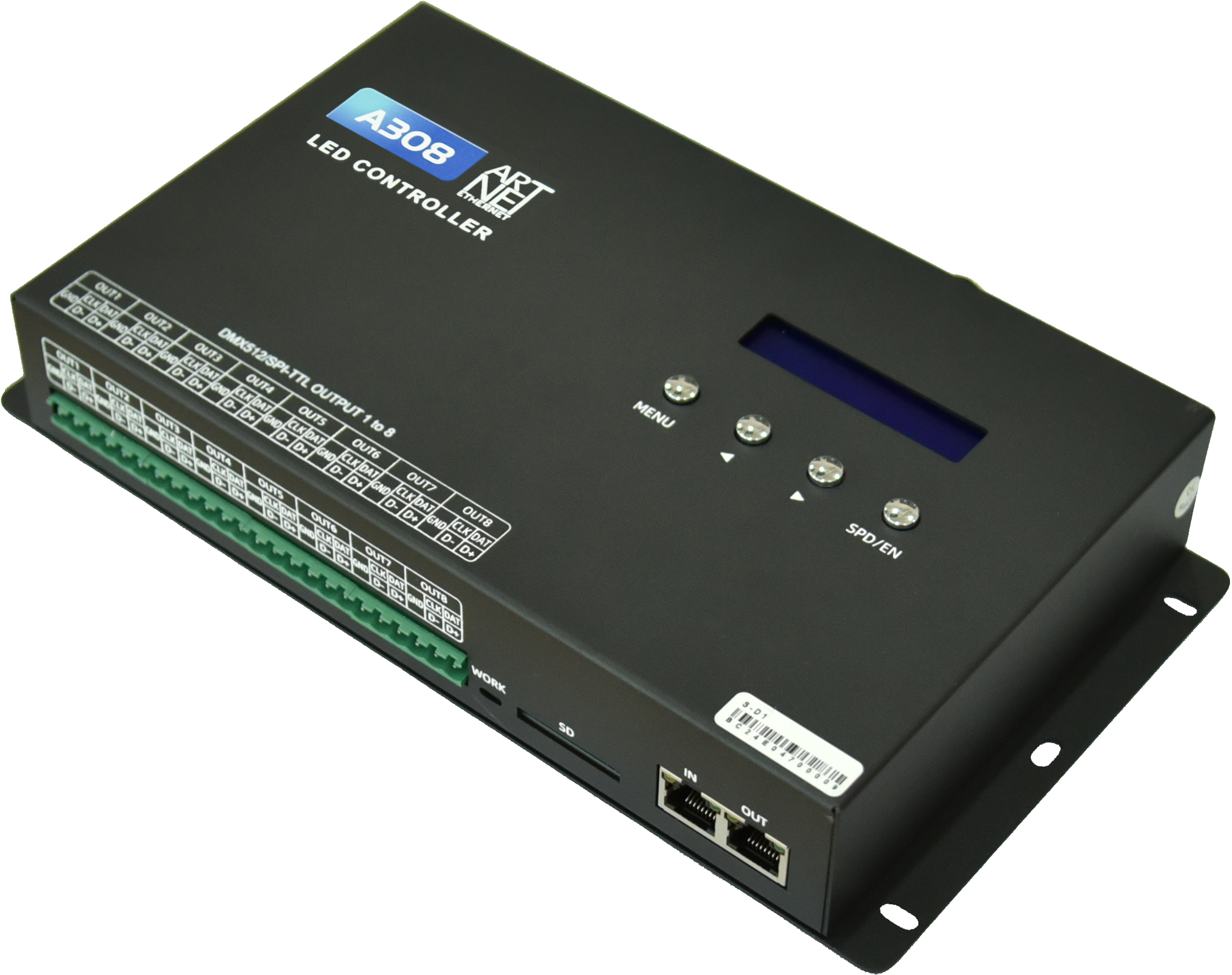

Seekway A308 LED controller

• Proprietary Mode: In Seekway's proprietary protocol mode, it reaches 3,840 channels across 8 ports—ideal for high-density pixel LED projects.

• Smart Fallback: It automatically switches between online Art-Net mode and standalone mode. If the network drops, it instantly reads effect files from the SD card to avoid blackouts.

• Form Factor: Power consumption is under 10W and it weighs only 0.976 kg. Its screenless design makes it highly compact and perfect for embedded installations where space is constrained.

Seekway A608: Interactive Touchscreen Controller

The A608 shares identical specifications with the A308 regarding Art-Net capacity (6 universes) and Seekway protocol capacity (3,840 channels).

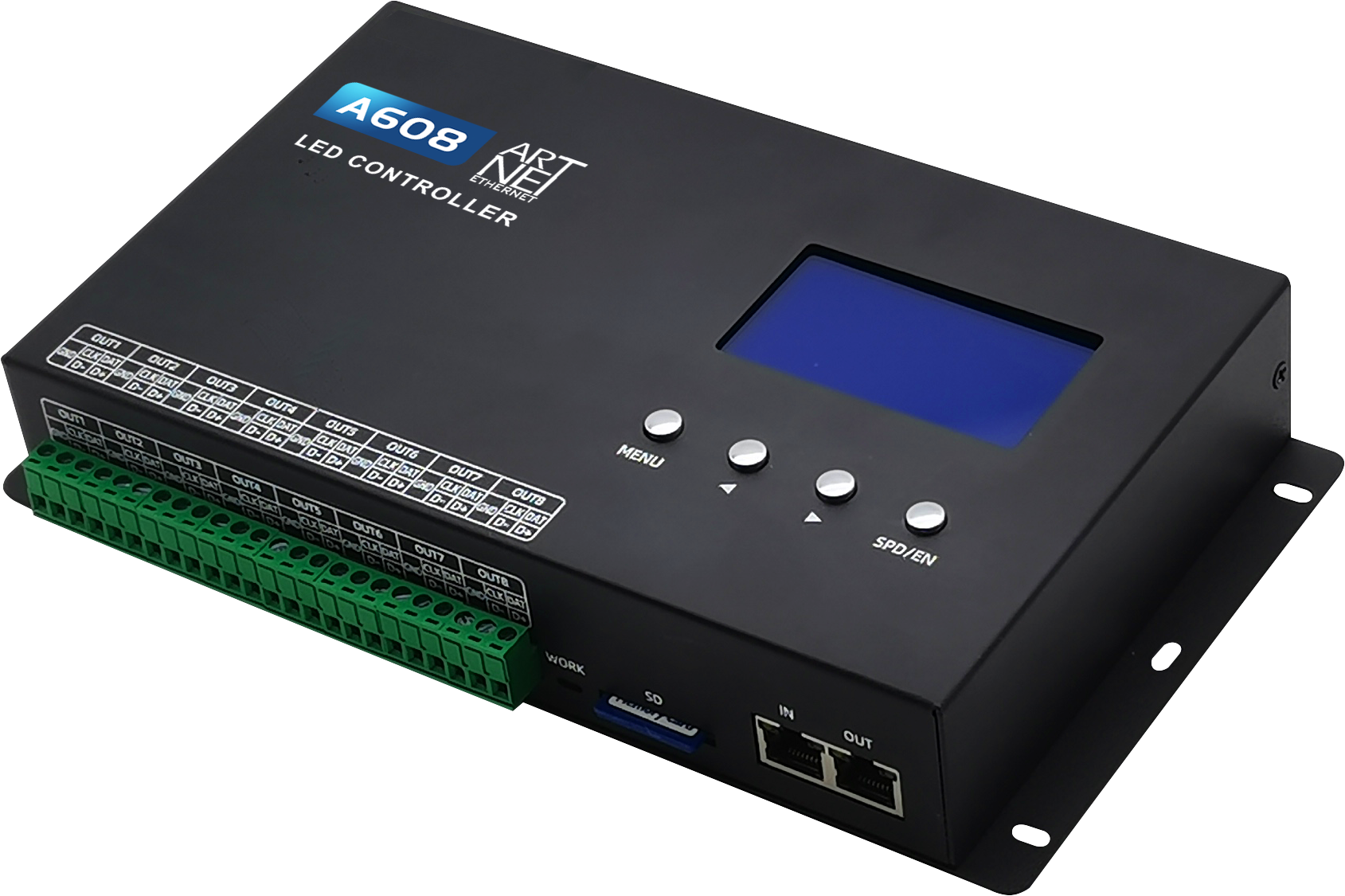

Seekway A608 LED controller

• On-Site Interaction: The key difference is its built-in 3-inch touchscreen, which enables direct on-site operation—allowing technicians to switch modes, view statuses, and adjust parameters without connecting a PC.

• Physical Specs: Power consumption is under 10W, weight is 0.976 kg, with dimensions of 253 × 137 × 45 mm. It is ideal for events, live performances, and mobile rental setups.

• Key Distinction: The A308 is designed for permanent architectural fixed installations managed remotely, whereas the A608's touchscreen makes it the go-to choice for dynamic live events requiring rapid on-site debugging.

Art-Net Network Configuration Essentials

When building an Art-Net-based lighting system, pay attention to the following four configuration rules:

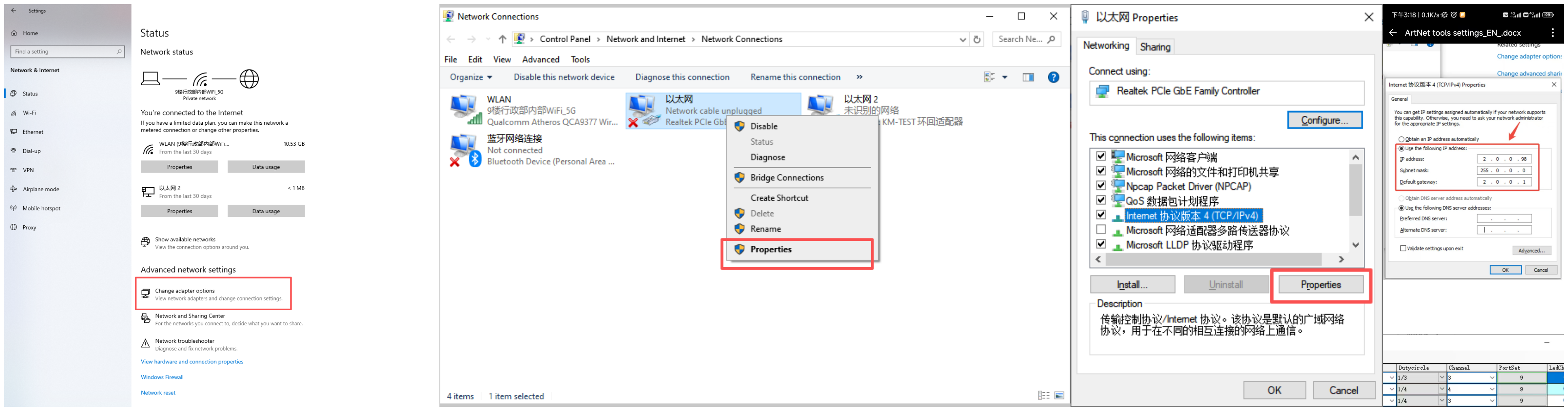

• IP Addressing: Art-Net devices default to 2.x.x.x Class A addresses (subnet mask 255.0.0.0) but can also use DHCP or manual IPs on a standard LAN (e.g., 192.168.1.x). The controller and all nodes must be on the same subnet.

Troubleshooting Common Art-Net Issues

Real-World Art-Net Applications

Art-Net's flexibility makes it the protocol of choice across diverse lighting scenarios:

• Event and Stage Lighting: Touring productions use Art-Net to distribute hundreds of universes from a single console to LED video panels. The A308's compact form factor makes it easy to mount in tight truss spaces, while its 8-port output handles complex pixel-mapped stage backdrops.

• Club and bar: Fiber-optic runs can connect a control room to A308 controllers distributed across a building facade. Both the A308 and A608's dual-mode capability ensures the facade continues running even if the network link is interrupted.

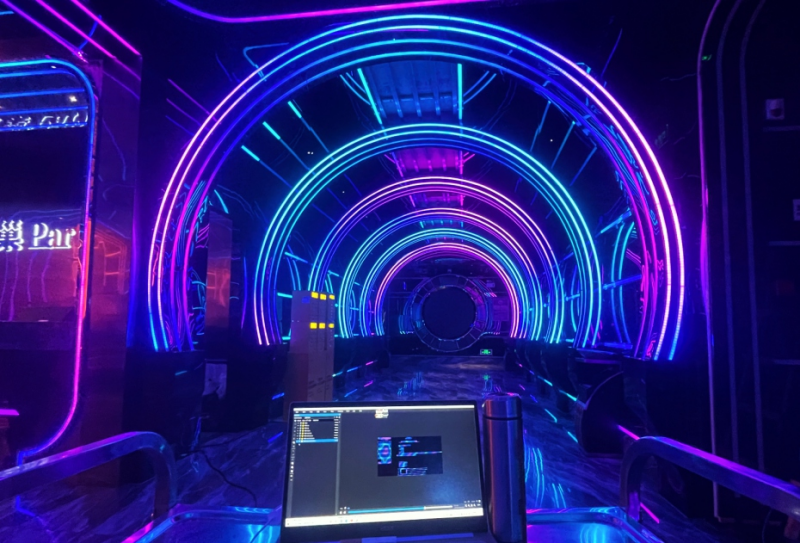

Seekway’s club lighting installation

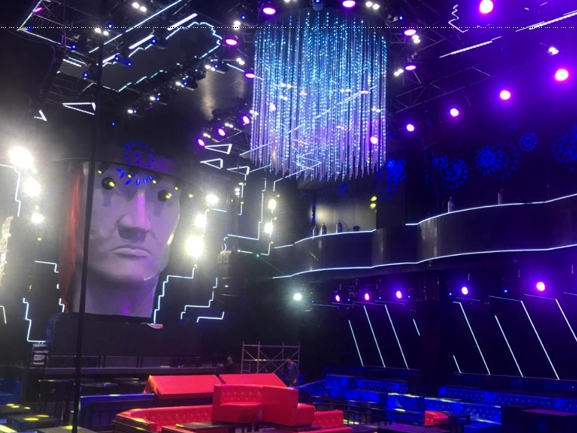

Seekway’s 3D lighting at bar in China

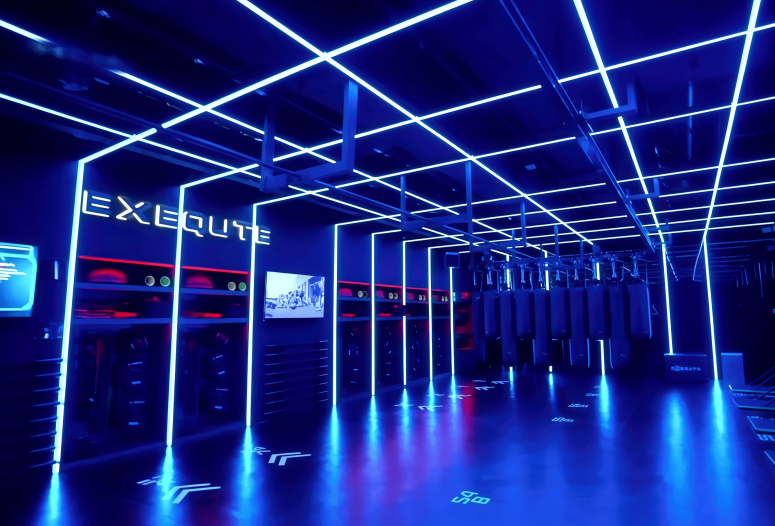

• Gym and venues:Energetic music is often played in gyms. With the sound control feature of the A608 controller, the music and lighting can be synchronized, creating an immersive audio-visual experience.

Museum and gallery：In museums and exhibition halls, one often sees lighting fixtures of various shapes. These fixtures come in diverse forms and are placed in seemingly random positions, posing a significant challenge for creating lighting effects. With the A608 paired with the Maptools feature of Magic Player software, both irregularly shaped and standard fixtures can be controlled in real time with high precision.

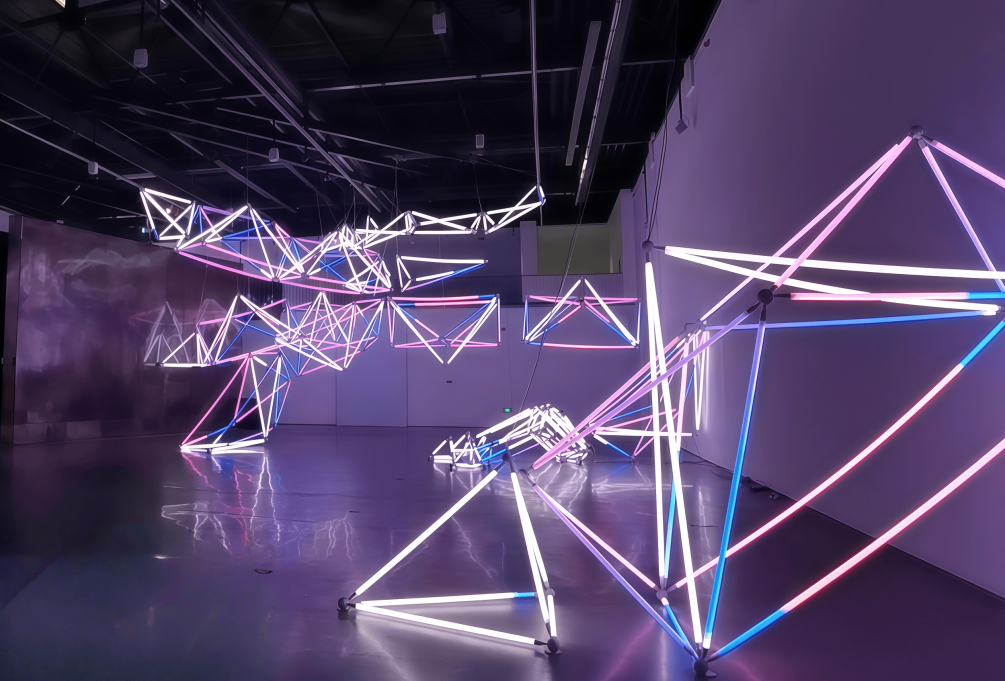

Ningbo Museum of Art installation in Zhejiang China

• Media Walls and Pixel Mapping: Large-scale LED video walls use ArtSync packets to synchronize multiple universes for frame-accurate pixel mapping.

Art-Net Protocol FAQs

Q: Do both the A308 and A608 require a PC to run Art-Net?

A: No. Both support automatic mode switching. They run online Art-Net when connected to a network and automatically fall back to SD card standalone playback when the network is unavailable. However, the A608 allows direct on-site configuration via its touchscreen, while the screenless A308 requires Magic Player software for initial configuration.

Q: Can Art-Net and sACN coexist on the same network?

A: Yes. The Art-Net 4 specification fully supports coexistence with sACN. Additionally, Seekway's A308 and A608 can seamlessly switch between Art-Net and Seekway’s proprietary control protocol.

Q: What is the main difference between Art-Net and DMX512?

A: DMX512 is a legacy serial protocol running over RS-485 cables, limited to 512 channels per link. Art-Net encapsulates this DMX512 data into standard Ethernet UDP packets, enabling thousands of universes, bidirectional RDM communication, and automatic device discovery over network infrastructure.

Conclusion

The Art-Net protocol combines the immense flexibility of Ethernet with the universality of DMX512, making it the backbone of modern, large-scale pixel LED lighting projects. Seekway Innovations' A308 and A608 dual-mode controllers offer complementary solutions—the screenless A308 for embedded architectural installations and the touchscreen-equipped A608 for dynamic live events.

Want to build an Art-Net lighting system? Explore Seekway A308 and A608 controllers .
