Pixel mapping is the process of assigning each individual LED pixel to a specific output channel on your controller. Without accurate LED pixel mapping, your controller won't know where to send effect data, causing your fixtures to display incorrectly or stay dark.

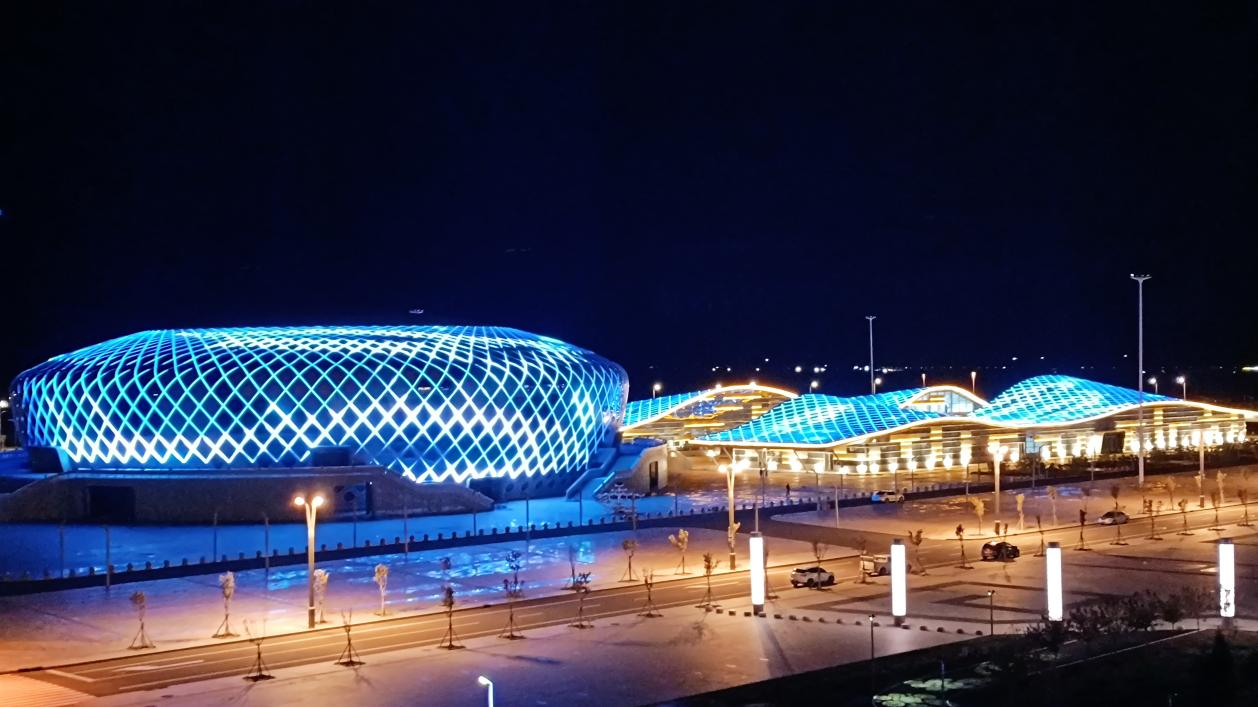

Xilinhot Stadium in China illuminated by Seekway Innovations
Every successful LED installation begins with a solid pixel layout design—essentially "drawing" the physical arrangement of your fixtures within the software environment. This tutorial provides a comprehensive walkthrough using Seekway's LED Player software. For installations that require custom address encoding or offline configuration, you can leverage its built-in Seekway Map Tools4 utility first to initialize hardware and define base parameters before driving into the core pixel mapping workflow.

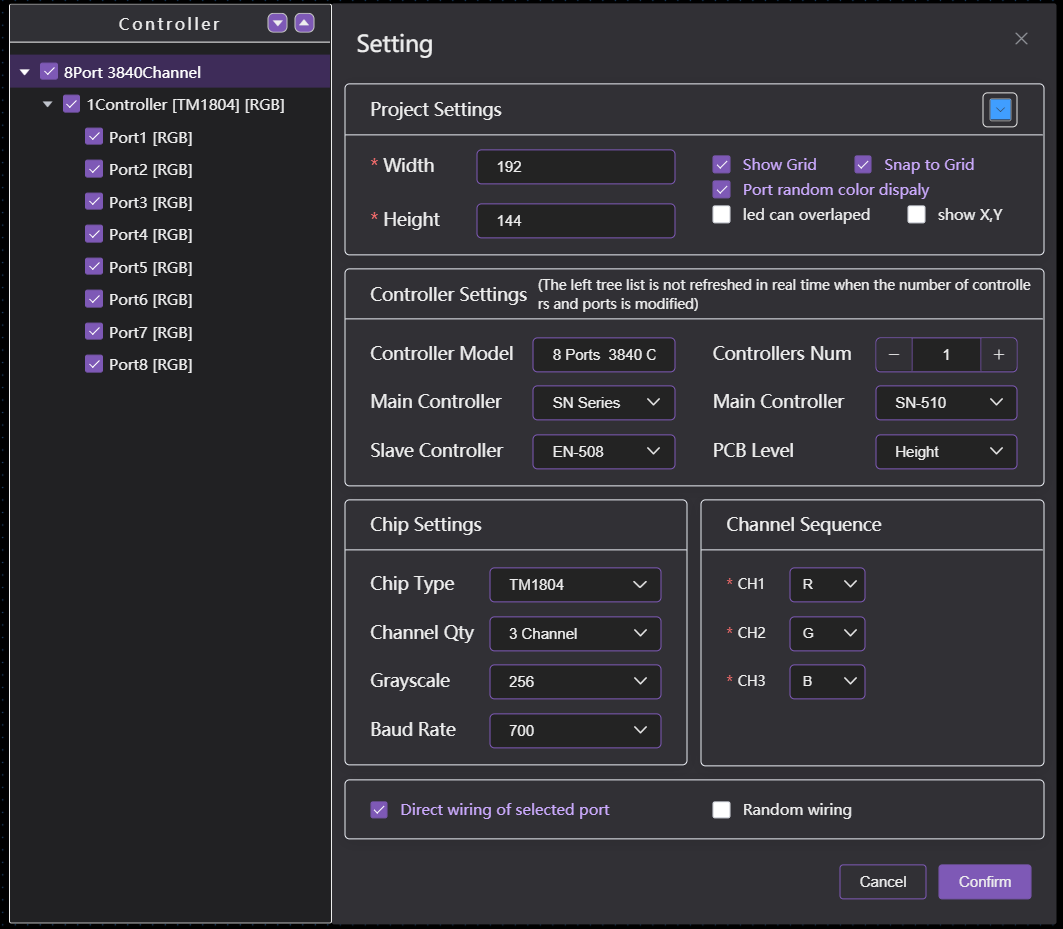

Open LED Player and click "File → New Project." Enter a project name and select your controller model. In the project properties, configure the key parameters: controller model, port count, max pixels per port (e.g., 1024px for E208), IC type (WS2811/SK6812), and color order (RGB/GRB).

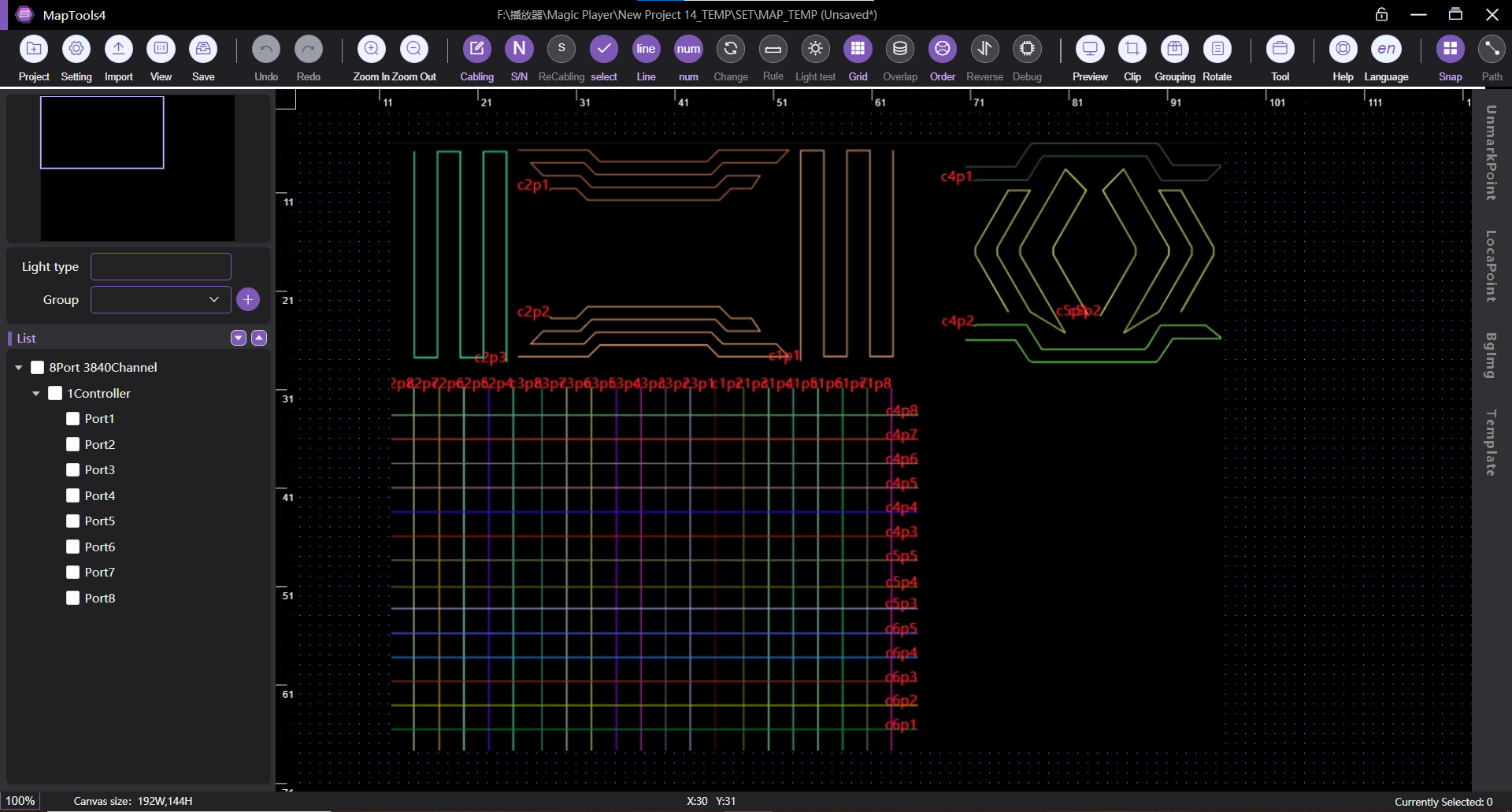

Step 2 — Design the Pixel Layout
This is the core of the pixel mapping software workflow. LED Player supports three layout types: linear (architectural outlines), matrix (LED screens), and custom (irregular installations).

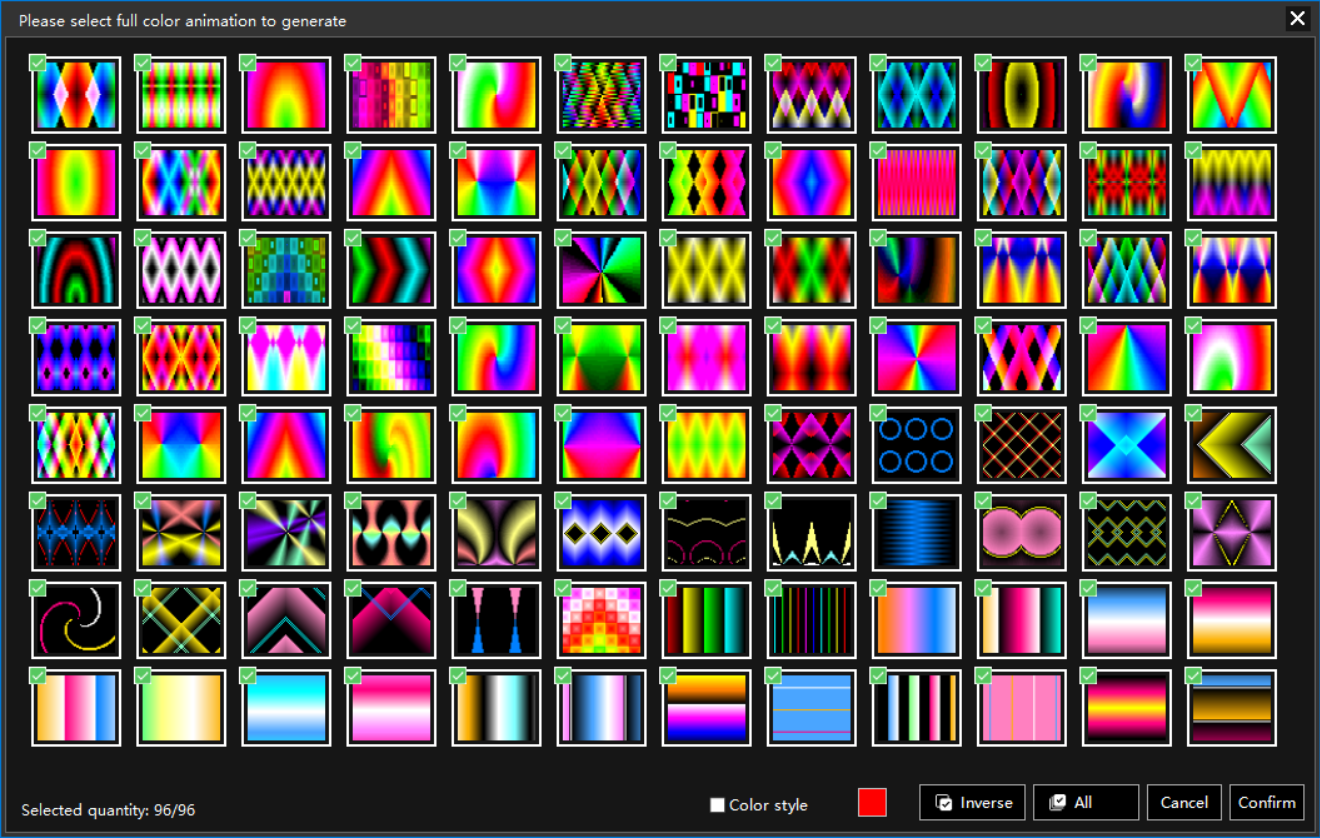

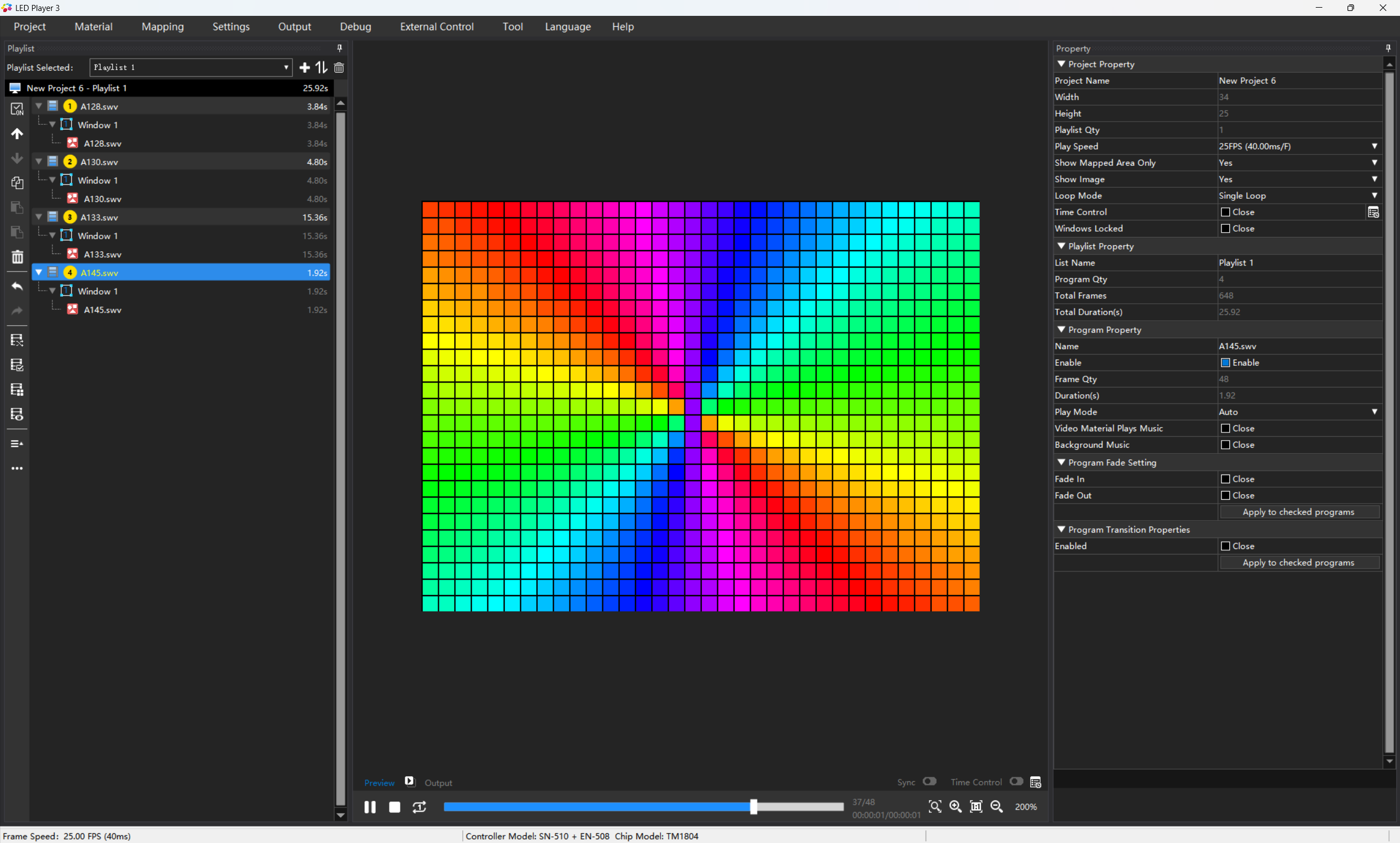

With the layout complete, it's time for LED effects configuration. LED Player includes built-in templates: static color, gradient flow, chase, audio reactive, and video playback.


After power-on, check each port's fixtures. Common issues and troubleshooting:
|
Symptom |
Likely Cause |
Solution |
|
Port completely dark |
Port misassigned or cable loose |
Check port assignment; reseat signal cable |
|
Color order wrong |
RGB/GRB mismatch |
Change color order in controller parameters |
|
Pixels flickering |
Signal interference or insufficient power |
Check power supply and signal cables |
|
Effect direction reversed |
Pixel numbering doesn't match physical layout |
Change direction in the layout editor |
For large installations, use "Tools → Signal Test" — the software sends a test pattern (all red → all green → all blue → all white) to each port to help locate anomalies.
Q: Is the pixel mapping process the same in LED Player and Magic Player?
A: The core logic is the same.
Q: How many pixels can one port handle?
A: It depends on the controller model. As an example, the E208 supports up to 1024 pixels per port under RGB 3-channel mode.
Q: What are the SD card requirements?
A: Use a Class 10 or better SD card, 64GB maximum, formatted as FAT32. The S208/S208E supports up to 64GB.
Q: The fixtures light up but the effect direction is wrong — what do I do?
A: In the layout editor, select the affected pixel group, right-click, and choose "Reverse Numbering Direction." Re-export to the SD card.
Pixel mapping is the most critical step in any LED control project — it determines whether effects render correctly on your physical fixtures. Through this pixel mapping tutorial, you've learned the complete workflow: project creation, pixel layout design, effect configuration, and SD card export. Whether you're using LED Player with the E208/M280/S608 or Magic Player with the A308/A608, the core logic is the same. Clear upfront planning, sensible port assignment, and disciplined debugging will ensure your project ships successfully.
Ready to start your pixel mapping project? Download LED Player and Magic Player from Seekway Innovations.
